UK scientists investigated the consequences of potential-induced degradation (PID) on photo voltaic cells and modules, primarily based on a area examine from a 1.2 MW PV system in Spain. In the meantime, in a separate examine, Japanese scientists developed a mannequin for one of many much less investigated mechanisms of PID, making a mannequin of its growth that could be helpful sooner or later. analysis and mitigation efforts.
The PID covers varied results which were noticed to cut back the efficiency of the PV module within the area. The best way these results develop can differ relying on the module supplies, set up situations, and different components, which are sometimes associated to the present leakage from the PV cells. to the body of the module or different parts.

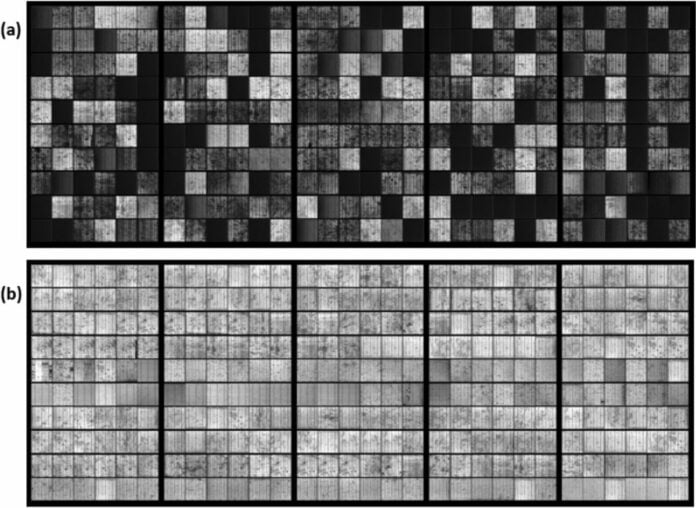

Scientists at York College in the UK investigated how PID affected a 1.2 MW PV set up in Barcelona, Spain, in a multi-year examine beginning in 2019. The examine used thermal drone imaging to see the PID affecting a number of module strings inside the mission – by on the lookout for modules with excessive floor temperatures. The examine discovered 4 mission strings affected by PID after one yr of operation, and continued to watch it over time.
The outcomes of the examine will be present in “Discipline examine on the severity of photovoltaic potential induced degradation,” which was not too long ago printed in Scientific stories. The crew discovered that these strings have been initially affected as a consequence of grounding faults within the mission’s inverters. Evaluating the outcomes from the affected strings to a “wholesome” one in the identical mission, the important thing findings embrace that even the place the PID appears to have a small impact on the general efficiency of the system, as soon as it see it might trigger a sudden lower in efficiency at virtually any time.
And it might additionally begin growing a thread at virtually any time, that means extra frequent testing or drone imaging have to be executed to stop it. The examine additionally discovered that an “anti-PID” field, fitted to recognized strings after one yr of operation, can forestall additional lack of PID efficiency and even deliver some stage of restoration, even when some modules have completely lowered efficiency – outlining the necessity. for early detection of PID mechanisms.
Polarization PID
In further not too long ago printed analysis, scientists led by the College of Tsukuba in Japan carried out an in depth evaluation of a PID mechanism generally known as “polarization PID,” which is called the fastest- superior PID mode, proven in several cell architectures, and displaying resistance to widespread mitigation strategies, corresponding to switching to a POE encapsulant.
Of their paper, “Mechanistic Understanding of Polarization-Sort Potential-Induced Degradation in Crystalline-Silicon Photovoltaic Cell Modules,” which was not too long ago printed in Superior Power & Sustainability Analysis, the group developed a mannequin for the polarization mechanisms of PID and outlined two issues that distinguish it from others.
“The 2 following options are significantly necessary: the route of the bias that causes the degradation isn’t at all times unfavourable. It depends upon the doping of the floor,” the scientists defined. “Additionally, the polarization-type PID is way sooner than PID of different sorts. It saturates inside a really quick time. A mannequin in keeping with attribute options must be established. “
The group has utilized its “Okay-Heart” mannequin to varied examples, illustrating the way it precisely explains varied PID results, and with additional growth they hope to it is a vital device in understanding and mitigating efficiency losses as a consequence of PID polarization.
