Because the penetration of renewables into the grid will increase, the storage of continually equipped power turns into extra useful. The advantages of long-term power storage are apparent: storing scattered clear power and pouring mentioned photo voltaic and wind electrical energy again into the grid in occasions of peak demand, ideally cheaper than standard which is fossil gasoline energy.

The trick stays power storage at scale. Even the place the inexperienced shoots of concepts and promise for LDES expertise sprout, the roots are intertwined in a graveyard of failed ideas.

Period or utility?

LDES is roughly outlined as methods able to delivering eight or extra hours of storage capability, though some place the cutoff level at 10 hours. A report by the US federal physique Nationwide Renewable Vitality Laboratory (NREL) just lately tried to shift the main focus of the definition from length to utility, arguing that length of storage “doesn’t replicate how the saved power or the quantity it supplies to the grid.” As such, it settled on a definition of “greater than 10 hours,” supplied by the federal government’s accomplice physique Superior Analysis Initiatives Company for Vitality (ARPA-E). That description suits most functions and covers applied sciences which are new to the grid and people which were used for generations, similar to hydropower.

Battery energy

Lithium-ion batteries have capability and electrical coupling points that make them too costly for long-term storage. Cyril Yee – director of Massachusetts-based clear power physique the Grantham Basis, and former chief innovation officer of local weather expertise entity Third By-product – mentioned pv journal Lithium-ion batteries have many issues with scale and lifelong.

“One factor I am not loopy about for lithium is the cycle-life, which is not very lengthy — we’re speaking about 3,000 cycles,” Yee mentioned. “Grid belongings are usually 20-year belongings, that is what utilities use. There is not any approach a lithium battery goes to final 20 years and, usually, different battery applied sciences and chemical substances like excessive threat. Normally, we’re robust in [LDES] house.”

Sam Lefloch factors to industrial decarbonization as the commercial sector main the Third By-product, and additional emphasizes the purpose. “In the event you go to tens or lots of of hours of storage, you should linearly enhance the price of the gear used to cost and discharge.”

Funding points

Whereas LDES appears essential, and with funding extra available from innovation and local weather funds – Yee and Lefloch say startups discovering entry to capital is just not a difficulty – the sector is struggling to go from promising concepts to profitable companies, with monetization being an essential challenge.

“One in every of our issues is [LDES] near-term monetization, as a result of the grid would not want it till you get to a really excessive penetration fee for renewables – 50-plus p.c,” mentioned Yee.

Wooden Mackenzie Senior Analysis Analyst Kevin Shang says utilities are significantly cautious. “The LDES ecosystem and novel applied sciences exist already in laboratories and analysis institutes, however it’s nonetheless comparatively new for utilities and at a really early stage,” Shang mentioned. “For the utilities, their precedence is to make sure the power, stability, and security of the ability system. So it’s comprehensible that they’re sluggish, however issues are bettering.

Sizzling sizzling

A very troublesome area is thermal power storage (TES), a expertise that has attracted funding and early industrial installations however has largely did not scale effectively. Wind engineering and energy conversion provider Siemens Gamesa has accomplished its massive and award-winning demonstrator undertaking in Hamburg, Germany. The demonstrator website shops as much as 130 MWh of power as warmth for as much as per week, utilizing volcanic rock. Verónica Díaz López of Gamesa was capable of affirm the pv journal that the undertaking was terminated even after it proved technically possible.

“Siemens Gamesa has determined in the beginning of Might 2022 to cease the demonstration operation of electrothermal power storage,” mentioned Díaz López, who put the choice on a “lack of a industrial marketplace for large-scale storage.”

Amongst different contenders solely Azelio, a Swedish firm that shops power as warmth in recycled aluminum as much as 600 C, has managed to commercialize its answer. The corporate stories that it presently has 13 methods, referred to as TES. PODs. It operates commercially throughout the UAE, Sweden, and South Africa, with the biggest set up supplying as much as 1.3 MWh of storage capability.

Berlin-based TES firm Lumenion says it has switched to solely storing power to be used as warmth in methods with a capability of lower than 100 MWh. Elsewhere, Australian-based 1414 Levels is presently transforming its thermal power storage system. MAN Vitality Options, in Switzerland, discovered restricted curiosity. Raymond Decorvet, a senior account govt at MAN, says that whereas the corporate has nice demand for industrial warmth pumps, the TES enterprise is just not very lively. “I have not seen any massive motion in that, not in power storage,” he mentioned. “To avoid wasting the warmth pump, completely. I believe it is due to the query: who pays for it? Who advantages from it? We have now to get rid of the limitations.”

One of many remaining hopes of TES is Malta Inc, an organization transferred from the “moonshot manufacturing facility” of Google proprietor Alphabet, X, which obtained greater than $85 million in funding. Malta has a pumped-heat power storage demonstration facility put in by the Southwest Analysis Institute, a non-profit group based mostly in Texas.

Anticipate compression

One other main hope of LDES, compressed air power storage (CAES), has a 50-year observe report, second solely to pumped hydro by way of put in scale. Two operations have been used reliably since 1978 and 1991, in Germany (with 290 MW capability) and Alabama (110 MW), respectively. A research performed in 2002 by the Electrical Energy Analysis Institute discovered that about 80% of US geology is appropriate for CAES.

The expertise shops power by compressing air and storing it in an underground cave or container. The air is later launched to drive a turbine. The expertise has a quick startup time, saves loads of power, and enhancements are nonetheless being made. CAES crops are increasing in China, the place builders are utilizing disused mines. The world’s largest CAES website, at 350 MW/1.4 GWh, has begun growth within the Shandong salt mine and will develop to 600 MW.

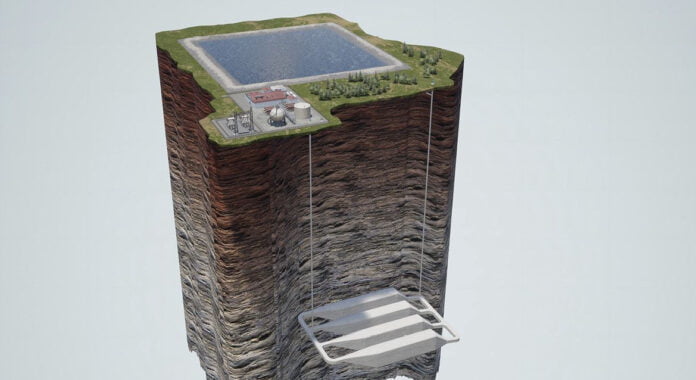

Hydrostor, a Canadian firm with patented superior compressed air power storage expertise, is among the main gamers exterior of China. With a $250 million warfare chest, Hydrostor counts Goldman Sachs amongst its buyers. Amongst its initiatives, Hydrostor is growing a 300 MW to 500 MW advanced-CAES facility in Ontario and the corporate has secured an influence buy settlement (PPA) from neighborhood electrical firm Central Coast Neighborhood Vitality for a proposed 500 MW facility in California.

Hydrostor CEO Curtis VanWalleghem says the corporate goals to enhance conventional CAES strategies by eliminating geological constraints. Hydrostor advanced-CAES will be positioned “wherever there’s appropriate arduous rock at a depth of 600 m,” says VanWalleghem, which is “greater than 50% of the world.”

“Hydrostor’s A-CAES expertise can ship the identical megawatts and megawatt-hours as pumped hydro energy whereas utilizing as much as 10 occasions much less land and as much as 20 occasions much less water,” added VanWalleghem.

The CEO claims his firm’s answer is 60% to 65% environment friendly, with capital expenditures for the system “within the $2,500/kW vary for eight hours, or $250 to $300 per kWh of storage capability, for a belongings with 50-plus years of life with out efficiency degradation.” The system is monetized by means of PPAs.

Batteries drain

One of many largest LDES electrochemical hopes is Kind Vitality, another battery participant with deep pockets. The corporate has raised greater than 0 million for an iron-air battery it says can retailer 100 hours of power at system prices aggressive with typical energy crops. The primary battery manufacturing facility within the type is about for Weirton, West Virginia, with accomplished batteries anticipated in 2024.

Movement batteries characterize one other vector of hope. Vanadium-based redox stream gadgets are effectively understood, and a 2022 undertaking in China is putting in a 400 MWh system. Different strategies utilizing totally different supplies – primarily shifting away from costly vanadium – are additionally gaining market curiosity.

NYSE-listed iron stream battery specialist ESS just lately expanded into Europe and with renewable funding within the US exploding, is making ready provide for anticipated demand. Senior VP for enterprise growth and gross sales at ESS, Hugh McDermott, mentioned pv journal how the corporate is ramping up manufacturing: “As quick as doable!” he mentioned. “We’re shifting rapidly to do our half to fulfill the anticipated demand within the LDES market. McKinsey & Firm predicts that we are going to want 30 TWh to 40 TWh of LDES within the US alone by 2040. The primary absolutely automated battery meeting line ESS has an annual manufacturing capability of 75 MW, with McDermott planning to develop capability to 200 MW.

“By way of complete price of possession, our power storage methods have considerably decrease price of possession than lithium-ion,” added McDermott. “That is partly as a consequence of the truth that our expertise has no biking limitations and our merchandise are designed for a 20-plus-year life with out deterioration or want for supplementation.”

Know-how firm Third By-product is backing half a dozen stream battery startups, together with new generations of stream chemistry that use natural compounds and different supplies to vanadium, similar to zinc-air. However extra funding is required, mentioned Wooden Mackenzie’s Shang, including, “The essential factor is that the deployment of [LDES] on a big scale there are lots of advantages. As a society, the reward is nice. However what we have to do now could be extra planning, extra funding, and extra motion. We should make investments at the moment to reap the rewards of tomorrow.”
