Italian scientists are taking a look at how flywheel storage and reversible strong oxide cells might be mixed with lithium-ion batteries in solar-powered minigrids. They discovered that flywheels mixed with batteries can be the most affordable possibility for streamlining electrical energy.
Researchers from the College of Perugia in Italy in contrast two completely different combos of power storage methods related to photovoltaics: one primarily based on reversible strong oxide cells (rSOC) and batteries, and the opposite counting on the flywheel storage and batteries.
“Contemplating our evaluation annual photovoltaic era and electrical load precise dataset,” mentioned researcher Linda Barelli pv journal. “We embody a statistical evaluation to acquire essentially the most consultant days, dynamic modeling of storage methods, simulations to find out the scale of the elements and to extrapolate the evolution of annual state-of-charge of the battery, analysis of the lifetime of the battery through the use of the algorithm to calculate the rain cycle. , and an in depth financial analysis of the levelized value of power (LCOE) and the levelized value of storage (LCOS) together with subsidies for self-consumption.”
The Italian group offered its findings in “Battery-hydrogen vs. flywheel-battery hybrid storage methods for renewable power integration within the mini-grid: A techno-economic comparability,” which was not too long ago printed in Journal of Power Storage The researchers say that each configurations of the storage system are designed for purposes in minigrids with PV vegetation.
Their mannequin relies on a minigrid with a 245 kW PV system related of a standard AC bus via the inverter, with connection to the medium-voltage grid carried out via a transformer. They think about the next essential parameters: the dthe nice energy, every day energy bandwidth, the ratio between the every day bandwidth and the imply energy, and the the every day imply energy ramp.

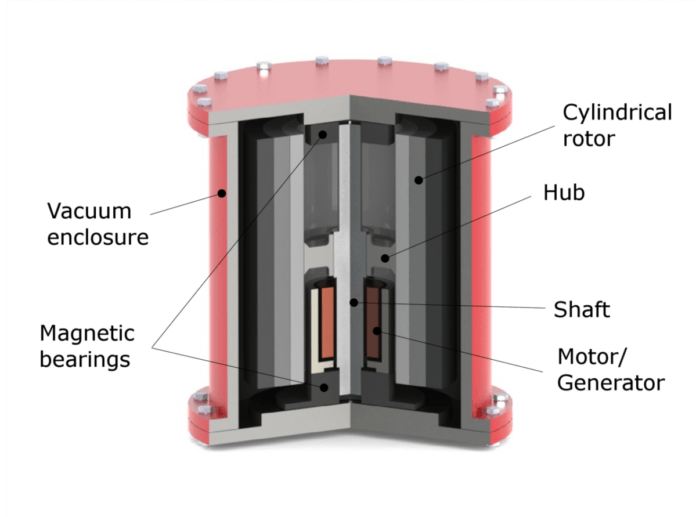

For the flywheel-battery design, scientists thought-about a UNDER–SPEEDILY mechanical flywheel product of metal with ceramic bearings and a working pace vary is 3,500 rpm at 8,500 rpm. For the rSOC-battery configuration, they think about an rSOC stack to be doable obtain spherical journey effectivity between 38% and 48%. For battery–flywheel system, the battery has a dimension of 260 kWh and the flywheel has a capability of 180 kW. For the rSOC-battery structure, the battery has a capability of 450 kWh and the rSOC has an influence of as much as 80 kW.
Scientists estimate a value of €970 ($1,058)/kW for the PV system and a value of €411/kWh for the batteries. For the rSOC system and flywheel know-how, they thought-about an preliminary value of two,930/kW and €162/kW.
“It is very important point out that, attributable to present powery disaster, as the The index rose rapidly from the final months of 2021,” mentioned the researcher. “Subsequently, LCOE estimate primarily based on quick–The time period instability of electrical energy costs might result in a transitory consequence.”
The analysis group discovered that the system primarily based on rSOC and batteries there’s a LCOE at €0.22480/kWh whereas primarily based on flywheel and batteries achieved an LCOE of €0.18/kWh.
“Not one of the methods proposed met the markt parallels, and the outcomes are fairly removed from the 2020 IRENA goal for PV methods,” he mentioned.
the rSOC+bater The mix might probably attain grid parity if the market worth is larger than €0.380/kWh and the flywheel-battery scheme can turn out to be aggressive if the market worth exceeds €0.320/kWh.
“As the principle outcomes for this built-in method, it may be seen that the rewards of self-consumption permit the storage system of the flywheel / Li-ion battery to achieve an LCOS that agrees with the 2021 common parity of market,” mentioned Barelli. “I see good purposes for this configuration in energy smoothing and hybrid storage methods, to course of essentially the most variable profiles by decreasing the stress on different methods that may thus which is devoted to fulfill the necessity to retailer longer timeframes, leading to higher methods and effectivity. sturdiness.”
