A brand new IEA-PVPS Activity 16 report seems at the usage of “implicit storage” to transform intermittent renewable sources resembling photo voltaic and wind into secure energy technology. It reveals that the entire price of adjusting the electrical energy system may be lowered by optimum use of capability overbuilding and dynamic discount.
The local weather disaster makes the power transition a necessity. Because of this all fossil power sources should disappear as quickly as attainable.
A key motivation for a fast transition to electrical energy is that the effectivity ranges are two to a few occasions increased than fossil-based power programs. It will drive fast development in electrical energy consumption and encourage a fast transition from fossil-based energy stations (fuel, oil) to renewable power programs. Wind and photo voltaic will present the lion’s share, as they’ve the bottom manufacturing prices and the very best long-range potential.
Nonetheless, wind and photo voltaic are climate and time dependent variable renewable power assets (VREs). Its implementation on the stage of ultra-high grid penetration requires their transformation from intermittent to secure assets which can be completely obtainable to fulfill demand, 24/7 and three hundred and sixty five days a 12 months.
A rising physique of labor reveals that the central enabler of this alteration is implicit storage, which suggests over-building VREs and dynamically constraining them in operation. Confirmed by a number of in-depth case research, we discovered that near 100% VRE energy grids that reliably provide clear energy and meet fixed demand aren’t solely attainable, but additionally economically viable. , when VRE assets are effectively regenerated from unconstrained run-off. -time technology to robust technology supply.
VREs can fully substitute all standard sources economically. Grid forming inverter know-how is now rising, fixing any grid frequency and stability points ensuing from changing standard rotating energy technology.
The applied sciences wanted to transform VREs from variable to secure technology can be found. These embrace power financial savings, one of the best mixture of VREs and different renewable assets, geographic dispersion, and provide/demand flexibility. Most significantly the change entails over-building and decommissioning VREs (aka implicit storage). This technique ensures acceptable complete VRE manufacturing prices, which embrace technology and grid integration prices.

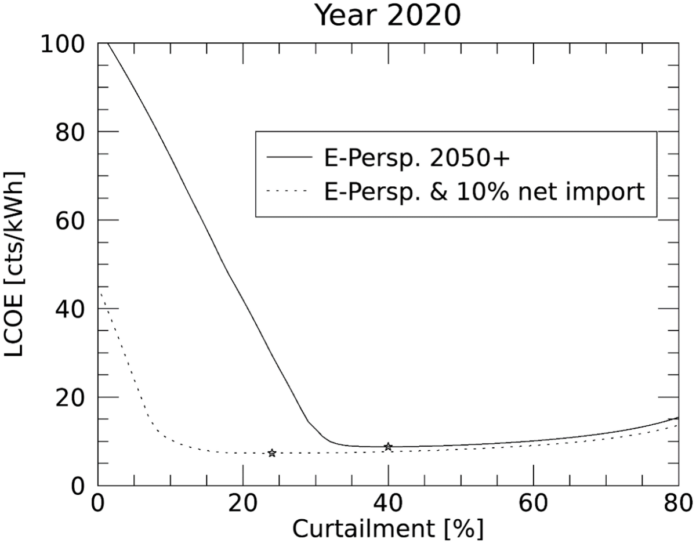

The outcomes of varied research, summarized in an IEA-PVPS report, present that proactive curtailment may be an vital a part of the answer. In Switzerland, eventualities of a 100% renewable electrical energy grid combine are analyzed to find out the financially optimum use of curtailment for the PV electrical energy fraction. It has been proven that 10% to 40% of PV power curtailment is perfect, resulting in levelized price of power (LCOE) values of €0.07 ($0.08)/kWh to €0.09/kWh.
The extra electrically built-in Switzerland is within the European electrical energy system, the much less implicit storage is required. However importantly, eventualities with restricted electrical energy imports result in acceptably low LCOE within the vary of €0.09/kWh because of the idea of implicit financial savings. In a pan-European analysis, roughly 30% power discount optimally results in an LCOE of €0.029/kWh together with hydrogen storage. For the US Midcontinent Impartial System Operator (MISO) area a most 35% discount may be achieved with 80% PV and 20% wind – resulting in an LCOE of $0.042/kWh.
Curtailment has traditionally been thought of one thing to be prevented and minimized. Nonetheless, it must be judged in another way as we speak. A serious conclusion of the work of the Worldwide Power Company is that curtailment is important to the power transition and lowers the general price of the transition. Storage might be an vital a part of the long run. However storing or changing each attainable kilowatt-hour of PV may be prohibitively costly.
This enabler can’t be instantly carried out and monetized as a result of the renewable energy rules that allow secure energy remuneration autos for producers of any scale (from residential to utility scale) don’t but exist. Pressing regulatory reform is required and VRE manufacturing help schemes must be reviewed. If no adjustments are made to help the schemes to implement the idea of sustainable energy, the consequence might be increased general prices for power switch.
This text is a part of the IEA-PVPS month-to-month program column. It’s contributed to the IEA-PVPS Activity 16 – Photo voltaic Useful resource for Excessive-Pentration and Giant-Scale Functions. Extra data may be discovered within the latest report on Activity 16, “Agency Energy Technology.”
By Jan Remund, Meteotest AG, Switzerland
