Fraunhofer ISE has developed photo voltaic thermal facade panels that act as warmth pump sources in buildings. The building-integrated photovoltaic (BIPV) answer is fabricated from ultra-high-performance concrete for aesthetic architectural facades.
Germany’s Fraunhofer ISE has developed a BIPV facade answer that absorbs warmth from photo voltaic radiation and ambient air. It makes use of warmth as a supply for residence warmth pumps.
Tabsolar’s invention consists of photo voltaic thermal panels fabricated from ultra-high efficiency concrete (UHPC). Every panel is inserted into multi-branched cylindrical hydraulic tube channels with photo voltaic fluid that absorbs warmth. A warmth exchanger transfers this warmth to the warmth pump circuit.

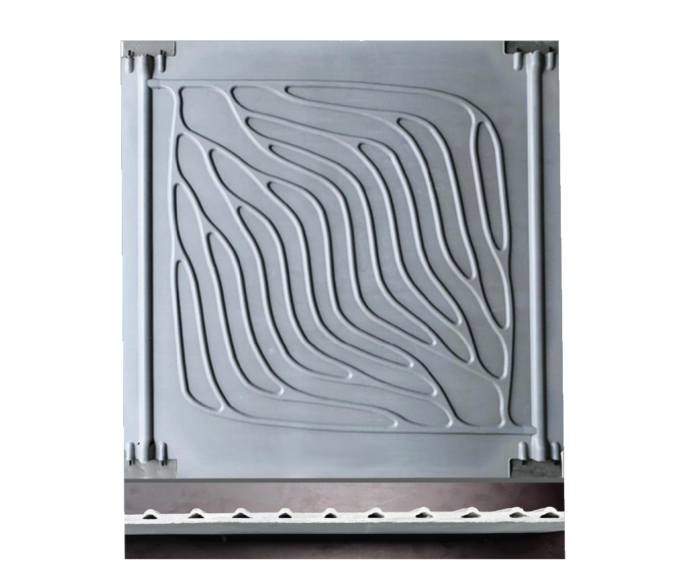

“The design of the channel constructions was created utilizing the bionic FracTherm course of developed by Fraunhofer ISE, which produces a multi-branched (or fractal) sample just like the veins present in leaves or the human physique,” the analysis institute mentioned in a press release. “Utilizing this course of, it’s potential to create a uniformly distributed community of channels in virtually any panel form, which ensures uniform stream distribution and likewise a low consumption price of power for the bomb.”
The PV-thermal panels measure 1,683 mm x 1,040 mm, which corresponds to an space of 1.75 m², in line with Tabsolar’s web site. They’re obtainable in glazed and unglazed variations. The unglazed variant is meant as a warmth supply for warmth pumps that warmth home scorching water or swimming swimming pools. It may be designed in numerous colours and with different constructions on high. Glazed panels with spectrally selective coatings can generate increased temperatures and are subsequently designed for use for home scorching water heating and backup heating, just like typical photo voltaic thermal collectors.
“Our simulations counsel that each new building and older retrofitted constructing inventory have sufficient entrance area for this objective,” mentioned Dr. Michael Herman, coordinator for the Tabsolar III joint analysis mission and mission supervisor at Fraunhofer ISE. He famous that the mission goals to reveal that the BIPV answer is a noise-free, energy-saving different to outside air items for air-to-water warmth pumps.
The prefabricated Tabsolar panels have been developed for suspended rear-ventilated façades (VHF), however they are often tailored for composite exterior insulation and end programs or sandwich wall programs, in line with Fraunhofer ISE. The panels may also be put in inside buildings as a thermally activated constructing system (TABS) for heating and cooling.
Fraunhofer ISE is exhibiting its tabsolar panels on the BAU commerce truthful for structure, supplies, and programs, from April 17 to April 22 at Messe Munich. The Tabsolar III analysis mission is funded by the German Federal Ministry for Financial Affairs and Local weather Motion (BMWK) and supported by a number of companions.
Picture: Fraunhofer ISE
Picture: Fraunhofer ISE
