The floor limitations dealing with the growth of photovoltaics in Germany led to a daring imaginative and prescient: putting in PV arrays on motorways and creating an intensive DC good grid within the course of. The plan might nonetheless be applied throughout Europe.
From pv journal Germany
Along with floating PV arrays and agrivoltaic methods, motorways may be a perfect resolution for the photovoltaics floor drawback. By 2030, as much as 200 TWh of solar energy might be generated yearly on Germany’s autobahn community. The implementation of this challenge will lead to a sensible grid, however the advantages don’t cease there.

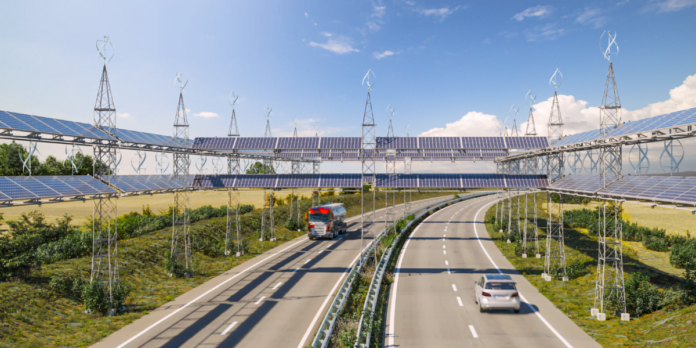

The challenge will include steel-grid masts erected each 15 meters alongside the edges of the roads. The PV modules can be put in on metal lattice girders suspended between the masts. “Vitality bands” made up of photo voltaic modules can prolong to site visitors axes between cities, industrial areas and airports.
The power band idea got here from the Altes Neuland Frankfurt Basis, which developed the challenge. It says that if 80% of motorways and 65% of federal roads – a mixed 45,000 kilometers – are geared up with bifacial PV arrays with 25% effectivity, as much as 200 TWh may be produced yearly.
If the total potential is exploited and the development processes are optimized, this will also be achieved at aggressive prices, the muse argues. Though the substructure product of steel-grid mast clearly exceeds the price of typical substructures, the masts even have a service lifetime of 100 years. New modules may be added repeatedly this time at little or no price.
The thought initially arose from the area necessities for PV and wind energy. Present electrical energy consumption in Germany is 560 TWh per yr. With motion and warmth steadily electrified, by the yr 2050 an estimated 2,400 TWh of electrical energy can be consumed yearly. The inspiration believes that 1,000 TWh of this may even be produced in Germany. The realm required for this quantities to 2.5% of the federal territory, or thrice the realm of the state of Saarland.
Vitality bands are meant as a direct present system. A 110 kV high-current cable runs underground. Mains connection needs to be positioned each 9 km to 87 km. The totally different lengths per community connection rely on using the module project. It’s subsequently conceivable to put one, two or three rows of modules on high of one another, to put in cross bridges with modules and, if needed, to cowl masts and motorway bridges with photo voltaic modules. There may be area for between 2,000 and 20,250 modules per kilometer.
The Altes Neuland Basis additionally considers the panorama. When an power band passes by a metropolis or previous a forest, avenue bushes or an exquisite panorama, the power band may be interrupted. On this case, the challenge planners can do away with the masts and modules and proceed solely with the underground cable. The power band array simply restarts behind the village or forest, whereas the 2 components are nonetheless linked by the underground cable.
The largest benefit of such a system is that the electrical energy is already distributed throughout manufacturing and may thus be delivered to the correct locations, the Altes Neuland Basis says. Roads join metropolitan areas, industrial areas and airports. As well as, there’s a charging infrastructure for electrical automobiles and electrical vehicles on long-distance routes. This manner, the electrical energy can be produced in the correct place or not less than movement in the correct place.
Dimension versus volatility
Vitality bands prolong for tons of of kilometers, so there may be additionally an opportunity of even fluctuating electrical energy consumption and manufacturing all through the system. In response to the muse challenge knowledge, when it rains in a single place, the solar could shine in one other place. Such a challenge is additional optimized when extra wind generators are linked to the system. Small wind generators may be positioned on masts and current methods positioned in fields alongside highways may enter the power bands.
Though an skilled evaluation is required for wind masses on the mast, it’s nonetheless simpler than protecting the motorway with PV methods, based on the muse. The latter variant requires wind experiences, drainage methods and lighting ideas. Researchers on the Austrian Institute of Know-how (AIT), Germany’s Fraunhofer ISE and Forster Industrietechnik not too long ago collaborated on a pilot challenge for motorway photo voltaic era utilizing PV rooftops.
Proponents of the challenge say their plan will face a couple of issues in offering area and permits. The arrays can be made only one meter to 2 meters on the facet of the roads. This space is owned by the federal authorities, so there isn’t any want for permits from many various landowners.
The beginning sign for the growth of the power bands can begin at a small scale. No want for an enormous infrastructure challenge. Municipalities and buyers can develop small sections. It’s only necessary that it’s developed in such a means that the sections may be linked at a later time limit and that there’s a authorized and technical foundation for the sale of electrical energy in sections.
Peter Birkner, a professor at Bergische Universität Wuppertal’s electrical power provide division, adopted the event of the challenge and the feasibility research as a member of the scientific advisory board. He’s satisfied of its feasibility and says that it’s now necessary to place collectively an acceptable consortium to develop a primary part.
It stays to be seen how shortly such a consortium may be fashioned, however buyers needn’t fear. All of the applied sciences which have been put in are prepared for the market and have been tried and examined. The inspiration argues that the required modules, metal pylons and underground cables have been in place for many years. The annual manufacturing potential of 200 TWh might be achieved as early as 2030, it stated.
