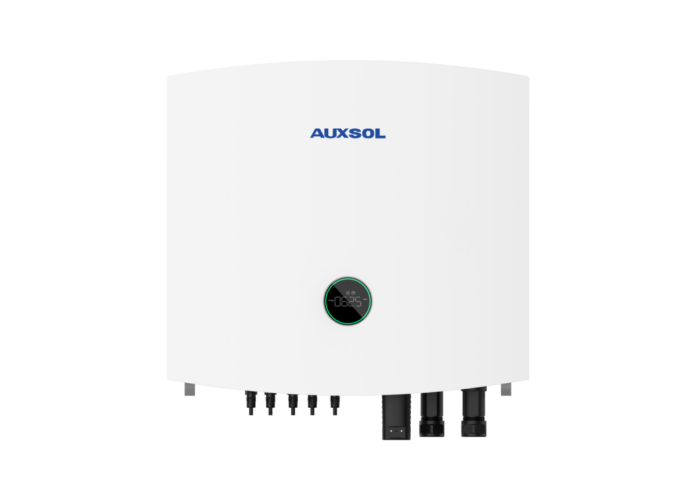

The ASG-TL collection
Picture: Auxol
Auxsol, a subsidiary of China-based know-how provider Aux Group, has developed new three-phase hybrid inverters for rooftop PV tasks.
The inverter and power storage producer affords the ASG-TL collection in 5 variations, with energy outputs from 5 kW to 12 kW.
“Three-phase hybrid photo voltaic inverters can considerably scale back electrical energy payments by way of energy output limitation, peak and valley arbitrage mode, and successfully enhance self-consumption,” Auxsol stated on its web site.
The transformerless inverters have dimensions of 540 mm x 420 mm x 218 mm and weigh 31.5 kg. They’ve effectivity scores of 97.34%, European effectivity scores of 96.45%, and have two most energy level monitoring (MPPT) factors.
The MPPT voltage vary is 200 V to 900 V, with a most PV energy enter of 18 kW for 12 kW inverters and seven.5 kW for five kW units. The utmost enter voltage is 1,000 V.
Working inside a temperature vary of -30 C to 60 C, the inverters have IP66 rated safety. They arrive with lithium-ion batteries with voltages from 200 V to 800 V, which assist a most cost/discharge present of 30 A.
