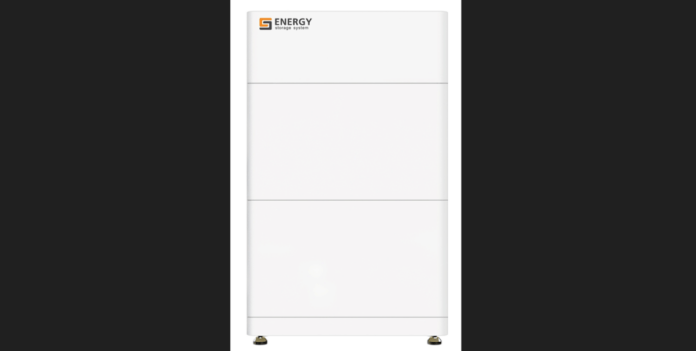

GS Vitality has developed a brand new lithium iron phosphate (LiFePO4) battery storage system for residential rooftop purposes. It confirmed off the brand new product on the Genera commerce present final week in Madrid, Spain.
The Chinese language power storage specialist mentioned that one to 5 battery modules may be related in collection, with capacities starting from 3.74 kWh to 18.7 kWh. The smallest battery within the Titan-HV battery line has a nominal voltage of 96 V, measures 606 mm x 651 mm x 217 mm, and weighs 49.5 kg. The biggest has a nominal voltage of 480 V, measures 1,910 mm x 651 mm x 217 mm, and weighs 198.7 kg.
“The GS Vitality Titan-HV collection is a high-voltage, expandable battery power storage system. It’s straightforward to put in and may be plugged in and used instantly,” mentioned GS Vitality.
The brand new battery may be positioned within the floor and may be put in indoors or outside. It discharges at ambient temperatures between -10 C and 50 C, and expenses at temperatures between 0 C and 40 C. It has a 10-year guarantee and is reported to have a lifecycle of greater than 6,000 cycles.
The brand new product is IP65-rated and authorised based on UN 38.3, IEC 62619, and IEC 62040 certifications.
