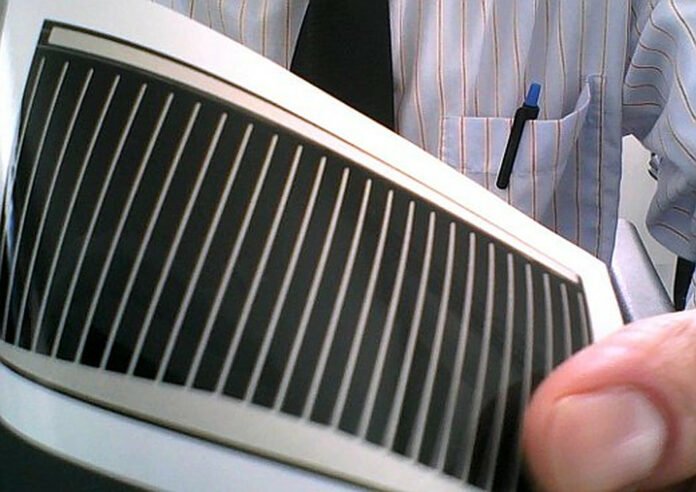

Swedish researchers have developed a way to recycle treasured metals from versatile skinny movie copper-indium-gallium-diselenide (CIGS) photo voltaic cells below delicate leaching circumstances. They confirmed that 100% silver and 85% indium may very well be recovered after 24 hours of leaching at room temperature with two moles of nitric acid.
Scientists from Chalmers College of Expertise in Sweden have proven easy methods to recycle treasured metals akin to silver (Ag) and indium (In) from versatile CIGS photo voltaic cells utilizing delicate circumstances in leaching. They use 15.6 cm2 x 15.6 cm2 versatile CIGS photo voltaic cells with Ag conductive grid and stainless-steel substrate from Swedish PV producer Midsummer AB. Every cell was lower into eight equal items after which every pattern was additional lower into one small and one massive piece.
The teachers positioned small items of PV cells into full-sized digestion vessels to extract the whole quantity of silver and indium per cell. They positioned the bigger piece of leaching containers and stuffed two varieties of containers with the specified quantity of nitric acid (HNO3) answer at a sure focus. The geometrical floor space of the liquid ratio (A:L) additionally diversified among the many experiments. The crew carried out all experiments at room temperature and with a stirring charge of 200 rpm.
After displaying that silver and indium are utterly dissolved throughout digestion, and due to this fact the leaching experiments can be carried out with the entire variety of cells of every factor, the scientists started to check what focus of nitric acid and what ratio of the geometrical floor space of the liquid resulted within the highest leaching yield.
The outcomes present {that a} nitric acid focus of two moles and a 1:3 A:L ratio result in very excessive restoration charges for silver and indium. After 4 to 6 hours of leaching, about 90% of the silver is recovered, and after 24 hours the restoration charge reaches 100%. About 20% to 25% of indium is recovered inside the first hour of leaching, and a most yield of 85% is achieved after 28 hours.
“If we evaluate all the outcomes for various experimental circumstances it may be stated that the excessive yields of Ag and In are all the time accompanied by excessive ranges of contamination from many different parts, with [Zinc] which is all the time current,” the scientists stated, including that molybdenum contamination may be an issue.
They then demonstrated that purer streams may very well be obtained with a selective leaching course of. Utilizing a 0.5 mole nitric acid focus and an A:L ratio of 1:3, the restoration charge of silver reaches about 85% after 24 hours with a low degree of contamination. Nonetheless, the restoration charge of indium dropped to solely 30%.
The scientists additionally famous that their methodology shouldn’t be but appropriate for industrialization, as a result of the concentrations of silver and indium are too low for use instantly in a possible purification course of utilizing greater than 1 gram per liter. “Some methodology of focus, for instance by reusing the identical leachate for a number of cells, needs to be thought of for industrialization,” they concluded.
The crew shared their findings in “Valuable metallic recycling from thin-film CIGS photo voltaic cells by leaching below delicate circumstances,” which was not too long ago revealed in Photo voltaic Vitality Supplies and Photo voltaic Cells.
