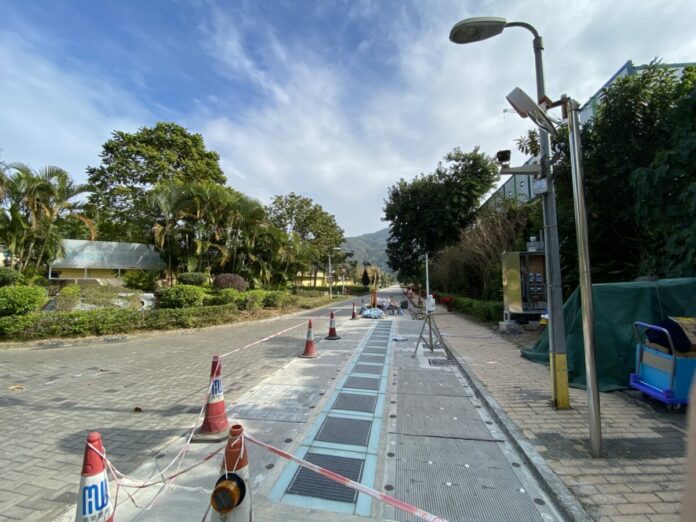

Picture: The Hong Kong Polytechnic College
Researchers on the Hong Kong Polytechnic College have designed a photovoltaic pavement (PVP) for city environments.
“We suggest a two-dimension finite aspect mannequin for PPV module electrical and thermal efficiency with floor affect,” mentioned researcher Tao Ma pv journal. “We performed lab checks to research the anti-skid characteristic and vitality output of the pre-fabricated module, in addition to parametric evaluation of module design and surrounding soil materials.
The scientists performed numerical and experimental research on the potential built-in thermal and electrical efficiency of a PVP situated in Hong Kong. The set up is predicated on monocrystalline photo voltaic modules with 20% effectivity and an influence output of 31.5 W. PVP makes use of tempered glass sheets on the back and front sides to enhance structural power and safety.
“The patterns are added to the entrance floor of the module for larger anti-skid properties in comparison with resin,” the researchers mentioned. “The damp layer with backfilling supplies of air and epoxy resin (EP) is used as an alternative of the hole construction, for higher help.”
Asphalt concrete is chosen because the floor soil, and the enter parameters together with climate, website situation, PV module output, module floor temperature, and the highway atmosphere temperature are chosen.
The scientists discovered that PVP can attain a possible electrical output of 0.68 kWh/m2 and an effectivity of 14.71%. They mentioned that filling with epoxy resin can cut back the annual most floor temperature of the PVP module by 8.4%, and famous that the common mitigation of the warmth island impact can attain 13.16 C.
The analysis workforce performed different simulations for PVPs in Shanghai and 255 different cities in China. They discovered that the electrical energy potential may vary from 0.70 kWh/W to 1.83 kWh/W, with cities in western and northeastern China displaying larger PV era potential.
“The price of the pavement has not been estimated to date, however industrial manufacturing is being thought of,” Ma mentioned.
The researchers offered their new expertise in “Simulation and experimental examine of the vitality efficiency of a pre-fabricated photovoltaic pavement,” which was just lately printed in Utilized Vitality.
In 2019, researchers at Hong Kong Polytechnic College developed PV ground tiles designed for pavements and biking tracks. The tiles have been examined on a ‘inexperienced deck’ in Hong Kong and confirmed passable photo voltaic vitality conversion, anti-slip efficiency, warmth resistance, and power.
