Renac Energy’s new hybrid inverters have effectivity scores of as much as 97.5% and European effectivity scores of 97.2%. They’re obtainable in 4 variations, with energy outputs from 3 kW to six kW.

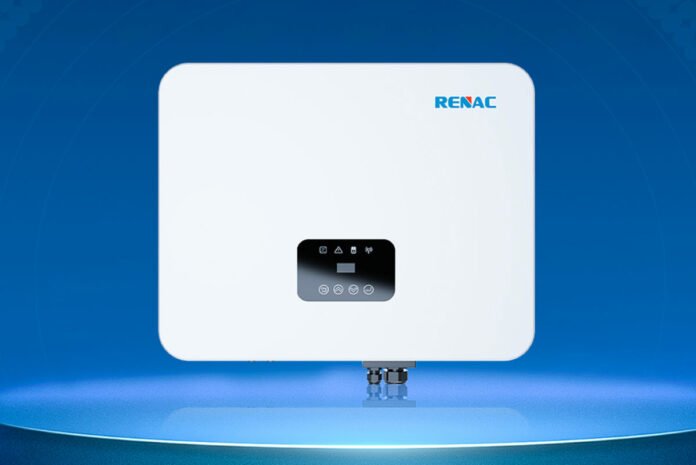

Renac Energy has developed new single-phase hybrid inverters for residential PV tasks. The Chinese language battery and inverter provider describes the N1 HV inverters as high-voltage gadgets with excessive effectivity and reliability.
“The hybrid inverter helps 150% extra PV energy,” an organization spokesperson stated. pv journal.
They’ll work with current on-grid inverters, no matter model, and may also work with out batteries, which prospects can add without spending a dime, in keeping with the corporate. The inverters can be found in 4 variations, with energy outputs from 3 kW to six kW. The gadgets measures 506 mm x 386 mm x 170 mm and weighs 20 kg.
The brand new merchandise have effectivity scores from 97.42% to 97.50% and a European effectivity score of 97.15% to 97.20%. They function two most energy level monitoring (MPPT) factors, with an MPPT voltage vary between 120 V to 550 V. The utmost PV energy enter is 4.5 kW for 3kW inverters and 9 kW for six kW gadgets. The utmost enter voltage is 600 V.
The inverters have an working temperature vary of -35 C to 60 C and IP66-rated safety. They’re licensed for the European market by TUV Rheinland and for the Brazilian market by INMETRO. They function lithium-ion batteries with voltages from 80 V to 450 V, with a most cost/discharge present of 25 A.
“The RENAC hybrid inverter could be very versatile, working in several residential situations by selecting from 5 working modes, together with self-use Mode, power time use mode, backup mode, feed-in-use mode, and EPS mode,” the corporate stated. stated.
