German researchers have investigated direct coupling and integration between PV and batteries on the scale of a single PV module. They are saying that their answer will likely be cheaper and supply higher efficiency than most energy level monitoring (MPPT) in optimizing PV system efficiency.
The researchers of The Institute of Vitality and Local weather Analysis IEK-5 Photovoltaik, an entity underneath Forschungszentrum Jülich GmbH in Germany, proposes using direct PV-battery coupling as a substitute for MPPT, to optimize the efficiency of the PV system.
“We tackle direct coupling and integration between PV and batteries on a PV-module scale, so it’s doable that PV-battery modules can be utilized for various scales of PV installations,” mentioned researcher Oleksander Astakhov. pv journal. “Usually, a PV-battery module can be utilized in numerous climates and utilization eventualities, on the similar time to attain the perfect operation it’s vital to decide on a selected mixture of PV-battery for one or one other local weather zone.”
The scientists describe their findings in “Environment friendly Energy Coupling in Immediately Related Photovoltaic-Battery Module,” which was lately revealed in RRL Photo voltaic. They famous the necessity to eradicate MPPT because of the prices it provides to PV programs, electrical energy overhead resulting from self-consumption, low reliability, and better upkeep.
“In distinction, a direct PV-to-battery connection could be a easy and efficient different,” they mentioned.

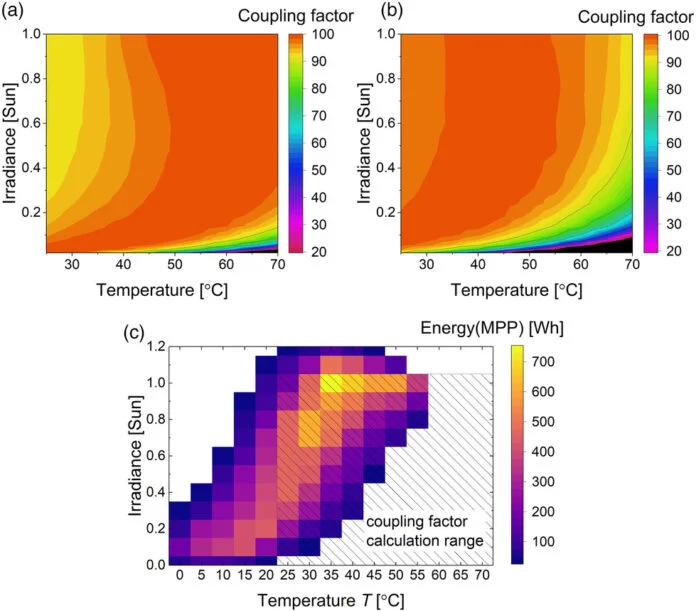

The German staff in contrast temperature and irradiance maps calculated for the coupling of temperature elements and irradiance knowledge from a hypothetical photo voltaic plant in Widderstall, Germany.
“The efficiency of the direct connection is evaluated by evaluating the obtained coupling issue dependencies on the facility effectivity of the facility converters used within the literature,” they mentioned. “Lastly, actual cost measurements are used to validate the calculated coupling issue maps and focus on the loading impact.”
The lecturers examined the direct connection of the PV-batter to a shingled PV panel primarily based on heterojunction photo voltaic cells and a 160 mAh lithium-ion battery. Measurements of IV curves present that the proposed mixture can preserve a coupling issue of greater than 90% in a variety of irradiances and energy outputs.
“Evaluating these outcomes to the facility effectivity of the MPPT gadget reveals that direct coupling supplies superior efficiency at peak situations and a wider dynamic vary, i.e., a wider vary of excessive coupling elements in irradiance scale,” the scientists mentioned. “Within the charging measurement, the battery was totally charged by the PV module at a relentless 25 C temperature underneath 1 Solar irradiance leading to 17.06% total effectivity. The coupling issue remained above 95 % is a significant a part of measuring a variety of battery charging situations.
Lately, researchers from The Institute of Vitality and Local weather Analysis IEK-5 Photovoltaik proposed the integrating battery storage in hydrogen manufacturing programs with PV-powered water splitting electrochemical (EC) cells. The researchers say that the direct integration of batteries in such programs, with out the addition of energy administration electronics, will assist clean PV energy fluctuations and strengthen the efficiency of EC elements.
