German researchers declare to have decreased ribbing results by utilizing slot-die coating for the manufacturing of perovskite photo voltaic cells. The outcomes are reported to be probably the most environment friendly photo voltaic cells constructed utilizing this system up to now.
Scientists in Germany The Helmholtz Middle Berlin for Supplies and Power GmbH has developed a brand new ink precursor method to enhance the movie high quality of halide perovskite photo voltaic cells. Within the research “Ink Design Enabling Slot-Die Coated Perovskite Photo voltaic Cells with >22% Energy Conversion Effectivity, Micro-Modules, and 1 12 months of Outside Efficiency Analysis,” which was lately revealed in Superior Power Suppliesthe researchers stated they used a formamidinium lead triiodide (FAPbI3) precursor ink primarily based on 2-methoxyethanol within the slot-die coating course of.
The slot-die is a single layer course of used to deposit skinny and uniform movies with restricted materials waste and low working prices.
“Slot-die coating is likely one of the most promising processes that may allow sheet-to-sheet, steady roll-to-roll coating, and solution-processable know-how in optoelectronic gadgets reminiscent of natural digital gadgets and polymers photo voltaic cells,” the crew stated, noting that trade sometimes makes use of spin-coating for perovskite cell manufacturing.
The researchers stated that the brand new ink within the introduction methodology geared toward stopping the so-called ribbing impact that often happens in perovskite photo voltaic gadgets with slot-dies and causes irregular shapes of the deposited moist perovskite movie.
“Ribbing is a standard impact seen within the decrease meniscus when the viscous and capillary forces between the ink, slot-die, and substrate are unbalanced,” they stated.
They adjusted the viscosity of the ink by acetonitrile (ACN) with a 46% focus. The compound acts as a co-solvent for FAPbI3 skinny movie and improved layer high quality and homogeneity.

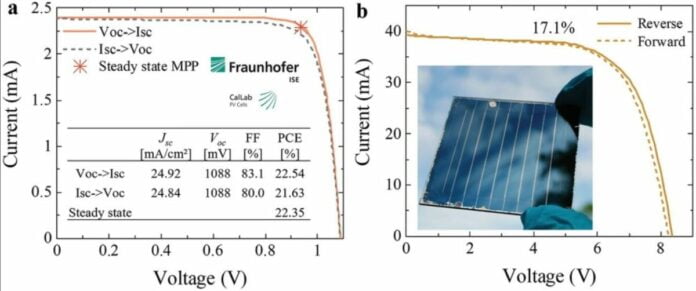

The German group used this system in a small space photo voltaic cell, attaining an influence conversion effectivity of twenty-two.54%, which is alleged to be the very best licensed worth for slot-die-coated perovskite. photo voltaic cell till now. The system additionally reached an open-circuit voltage of 1.088 V, a short-circuit present of 24.9 mA cm2, and a fill issue of 83.1%. The Fraunhofer ISE CalLab in Germany confirmed this outcome.
The crew additionally constructed mini-modules with lively areas of 12.7 cm2 and an effectivity of 17.1%.
“One-year outside sturdiness testing with steady most energy level monitoring of encapsulated gadgets has been carried out and proven that these gadgets keep near 100% of their preliminary efficiency throughout the winter and spring adopted by a big lower in efficiency throughout the hotter summer time months,” stated the researchers.
Trying forward, the teachers plan to scale the know-how to bigger system areas and assess efficiency beneath totally different long-term publicity situations.
