German scientists evaluated the efficiency of photo voltaic modules on the balcony related to an e-bike battery and located that this mix offered a steady and steady operation for 3 days. They examined two system architectures based mostly on passive and lively hybridization and acknowledged that each system designs provided passable outcomes.
Scientists from the Offenburg College of Utilized Sciences in Germany intend to combine a commercially obtainable lithium-ion battery for e-bikes with a balcony PV system with the goal of assessing the potential financial savings and development in self-consumption charges.
Their technique consists of connecting the battery to the system with a small quantity of further parts and with none modification, which they are saying lowers the price of the system. In addition they decided that, within the proposed configuration of the system, the microinverter doesn’t “know” that it’s related to a battery, which pushes the researchers to research using passive or lively measures to keep away from the utmost battery energy level (MPP) monitoring.

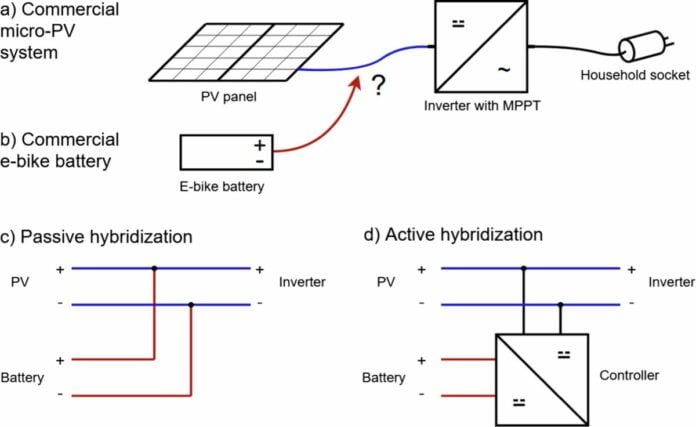

Because of this, the analysis group proposed two completely different system architectures, which it calls passive hybridization or direct connection and lively hybridization or lively coupling.
At first, the battery is related to the panel with out a microinverter or cost controller in between. “It’s based mostly on the matching of the PV and the battery’s respective present and voltage traits,” the scientists mentioned, noting that the system is self-regulated and no battery administration system is required. “Throughout battery charging, the system voltage rises and drives the PV in the direction of zero present when the battery is absolutely charged. Throughout discharge, a diode protects the PV from very low voltage degree.
The lively structure means the connection of a microinverter and a controller between the battery and PV system, which is ready to actively management the voltages and currents whereas regulating the interplay between the parts. “Right here, one facet of a controller is positioned in parallel connection between PV modules and inverter,” the lecturers mentioned. “The battery is related to the opposite facet of the controller.”
The passive design is cheaper than the lively one but in addition much less environment friendly than the MPP-tracked setups, the group mentioned.
Lecturers use real-time information and high-resolution artificial load profiles to conduct a collection of simulations through Simulink (MATLAB) to evaluate the efficiency of each methods over a one-year interval. They assume that the system consists of three collection related PV modules every with an output of 100 W, a 36 V electrical bicycle lithium-ion battery with a nominal vitality of 555 Wh and a nominal capability of 15.5 Ah, and a 250 W microinverter with an MPP tracker.
They in contrast the efficiency of two architectures in a balcony PV system with the identical traits however with out storage. “The three methods had been examined on completely different days with completely different meteorological circumstances,” in addition they defined. “For AC and DC measurements, information is recorded in one-second increments. Time information is recorded in ten-minute increments.”
pv journal print version
Within the newest difficulty of pv journal we flip the highlight to European photo voltaic with a complete evaluate of the state of the PV business throughout the area’s predominant markets and a take a look at laws aimed toward driving a photo voltaic rooftop increase. We additionally discover the issue of creating a photo voltaic panel recycling business in Australia, the place business gossip isn’t serving to issues.
By its evaluation, the German group concluded that the lively and passive methods are technically viable as a result of they can present steady and steady operation for 3 days. “The passive hybrid system is conceptually easy and permits steady operation of the inverter helpful to supply base-load protection within the dwelling,” it mentioned. “The lively system options intermittent inverter operation however with the next system effectivity.”
The scientists mentioned that the monetary viability of the 2 venture designs needs to be additional investigated, since the price of the battery should characterize an impediment that may be overcome, in the long run, by rising the dimensions within the balcony PV system. “For a variety of use, the system setup needs to be tailored for higher flexibility, which can want to incorporate battery communication,” they concluded.
Their findings are offered within the paper “Integrating a lithium-ion battery right into a micro-photovoltaic system: Passive versus lively coupling architectures,” printed in Photo voltaic Vitality.
