Researchers within the United Arab Emirates have developed a approach to make use of compressed air storage to retailer solar energy and supply further cooling. They declare that their prototype can compete with commercially out there compression-cooling air conditioners.
Scientists on the College of Sharjah within the United Arab Emirates have developed a approach to make use of compressed air vitality storage (CAES) for cooling functions in scorching climates, the place electrical energy demand is pushed by air-con.
“The proposed cooling system on this analysis originates from a system for compressed air vitality storage,” mentioned researcher Abdul Hai Al-Alami. pv journal. “The system works by routing the surplus vitality from the photo voltaic PV farms to an air compressor that fills the storage tanks to a excessive strain of about 20 to 30 bar. Each time the vitality, in instances of no photo voltaic radiation, the air is launched into an air turbine related to an electrical generator.”
The researchers described the system as an ancillary set up to an current compressed air vitality storage setup and mentioned its exercise is akin to a commercially out there compression cooling air conditioner. It makes use of commercially out there air sources, pre-filled nitrogen tanks with a 50 L nominal capability and a nominal strain of three,000 kilos per sq. inch.
“Since nitrogen makes up 79% of air, the properties of the gasoline are taken for nitrogen to imitate the conduct of air,” they mentioned.

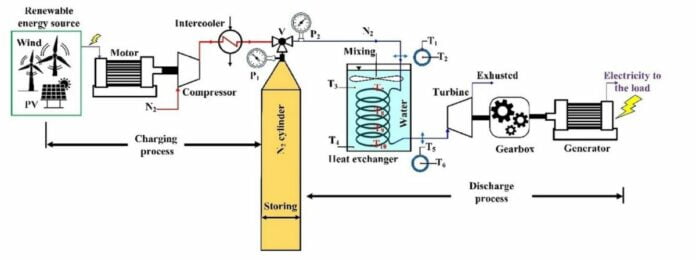

For the charging stage, the system depends on cylinders linked to a 9-horsepower air motor that’s used to transform the potential vitality of the compressed air and kinetic vitality of the flowing air into mechanical rotational vitality. movement. The wind motor is coupled to a 1:8 ratio gearbox, which is coupled to a 3.5 kW everlasting magnet electrical generator.
“To simulate the precise efficiency and response of the hundreds, the generator operates two 100 W lamps, a drill of 250 W, and a vent fan of 6 W ranking and a complete provide present of 1.7A,” the scientists mentioned.
For the discharge section, the system makes use of a 9.2-meter serpentine polyethylene to hold air to the pneumatic gadgets, the pipe is then rolled into 4 40 cm concentric loops immersed in a 23.6-liter water bathtub contained in a container measuring 53 cm. in diameter.
The scientists mentioned that the system can produce chilled water for air-con functions at a temperature of about 5 C. In addition they mentioned that the vitality storage course of reveals a 4% increased roundtrip effectivity by utilizing air heating by cooling water for air-con functions.
“In scorching climates, this technique suits completely, not solely to exchange battery storage, but additionally to offer air-con by means of chilled water circulation,” mentioned Hai Al-Alami. “The compressed air vitality storage system additionally has a 26% effectivity enhance, which is a giant benefit. Add to this that the cooling offered by the increasing air considerably reduces the vitality demand imposed by the air-con compressors, as a result of the all that’s wanted is a warmth exchanger to make the most of the cooling impact from the growth, which though not good for the storage facet of the system, is a superb facet impact of the method from the air-con vantage level.”
The analysis group offered the system in “Potential of cooling for warm climates by utilizing thermal administration in compressed air vitality storage techniques,” which was not too long ago printed in Scientific studies.
“The proposed system is affordable and doesn’t require particular refrigerants or highly effective compressors,” the scientists concluded.
