India’s Sunbond Vitality has developed new mono PERC modules constructed with 144 half-cut M10 cells and 10 busbars. They’re out there in energy outputs from 520 W to 550 W, with efficiencies of 19.83% and 21.23%.

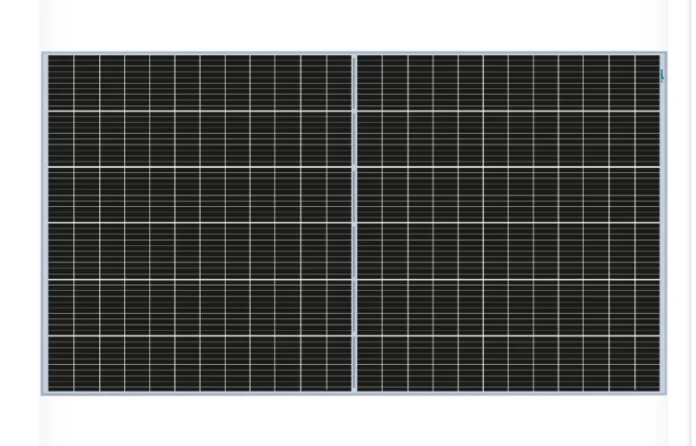

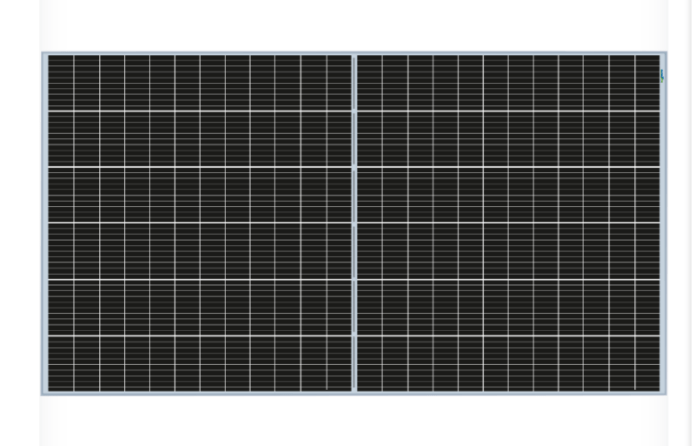

Sunbond’s Pacific half-cut mono PERC module

Picture: Sunbond Vitality

From pv journal India

India-based Sunbond Vitality has unveiled a brand new line of monocrystalline PERC modules. Its Pacific collection has energy outputs from 520 W to 550 W and efficiencies of 19.83% to 21.23%.

The modules are constructed with 144 half-cut M10 cells and 10 busbars. The open-circuit voltage is from 49.15 V to 49.45 V, and the short-circuit present is 13.35 A to 13.90 A.

The modules measure 2,300 mm x 1,140 mm x 40 mm and weigh 28.5 kg. They characteristic an IP67/68 junction field, an anodized aluminum body with twin wall profile, trilayer backsheet, low-shrinkage PID-resistant ethylene vinyl acetate (EVA) encapsulation, and excessive transmittance anti-reflective glass. The utmost system voltage is 1,500 V DC. The temperature coefficient is -0.39% per diploma Celsius.
