Scientists in Singapore have investigated all strategies of thermal evaporation for the manufacturing of perovskite photo voltaic cells and modules. Regardless of the constraints, new strategies can result in excessive manufacturing throughputs and extra environment friendly merchandise.

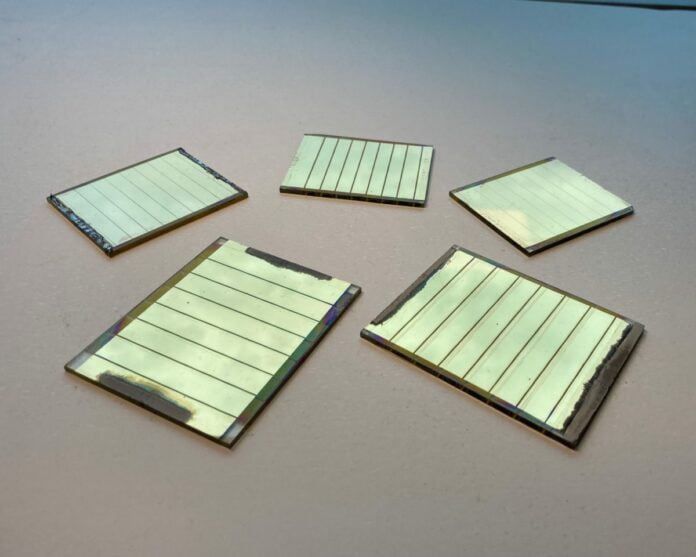

Scientists from Singapore’s Power Analysis Institute at Nanyang Technological College are investigating how thermal evaporation (TE) can be utilized to make mini perovskite photo voltaic modules. TE is a mature method that’s usually used on the microelectronic and optoelectronic industries to supply natural light-emitting diodes (OLEDs), metallic contacts, and coatings for numerous supplies.
“We analyzed the usage of a number of strategies based mostly on evaporation to create halide perovskite skinny movies,” stated researcher Annalisa Bruno. pv journal. “This ranges from comparatively easy single-source deposition and multi-source co-evaporation to extra complicated multistep evaporation and hybrids of thermal evaporation with gasoline response and answer processing.”
He stated that this mixed method takes benefit of the benefits of each strategies. However he famous that it additionally has some limitations, comparable to elevated complexity and the usage of solvents.
“We consider that thermal evaporation is the best perovskite deposition methodology to make that fast leap, as it’s simply scalable, comprises no hazardous solvents, and is already nicely built-in into present strains of manufacturing of opto- and microelectronics,” stated Bruno.
The researchers stated that one of many essential problems with co-evaporation is the necessity for intensive optimization of the depotsition parameters for perovskites with complicated stoichiometries, particularly when greater than two or three precursors are evaporated on the similar time. In addition they notice how lengthy the deposition time will be an impediment for business manufacturing, since most research on these strategies are likely to ignore this problem.
Their overview presents a collection of strategies for the manufacturing of perovskite photo voltaic cells and mini modules. These strategies embody one-step thermal evaporation, multi-step thermal evaporation, and multi-step hybrid deposition.
“I’mt could also be fascinating to supply no solely evaporated perovskite movie but in addition totally evaporated modules utilizing similar fabrication strains,” stated the group.
Benefits are reported to incorporate a excessive course of stage management, exactly controllable movie thickness, straightforward successive addition of many layer, and low substrate temperature processability. The researchers say that the strategies may allow higher purification of the precursors throughout movie formation, glorious spatial uniformity inside gadget batches, good reproducibility over a number of fabrication rounds, and excessive yield of manufacturing.
“Qe complete course of will be automated and managed, making it intrinsically enticing for large-scale and high-throughput manufacturing,” they stated.
They describe the manufacturing strategies of “Thermal evaporation and hybrid deposition of perovskite photo voltaic cells and mini-modules,” which was lately printed in Joule.
“We consider that the way forward for analysis on this area ought to take a look at new optimum gadget interlayers to enhance the standard of the energetic materials and the transparency, transmission of defects via strategies based mostly on vacuum, and enhance operational stability to maximise and understand the complete potential of thermally evaporated perovskite photo voltaic gadgets,” stated Bruno.
