From pv journal 02/23
Changing all of as we speak’s fossil-fueled grey hydrogen manufacturing to a inexperienced type of vitality provider would require 950 TW of electrolyzer capability. With 4 to 5 PW of electrolyzer capability anticipated by 2050, the European Patent Workplace and the IEA count on 4 completely different electrolyzer applied sciences to dominate the sphere.
Alkaline water electrolysis, which incorporates two electrodes fabricated from a non-noble steel (often nickel) working in a liquid alkaline electrolyte answer, is the oldest know-how. Polymer electrolyte membrane (PEM) electrolysis, launched within the Nineteen Sixties as a gas cell know-how, consists of a stable polymer electrolyte and has been commercialized. Stable oxide electrolyzer cells (SOEC), that are within the pre-commercialization demonstration part, use a stable oxide – or ceramic – electrolyte to provide hydrogen fuel. Lastly, the anion trade membrane (AEM) know-how is an evolution of alkaline water electrolysis and is at present present process a market uptake part.
Rising funding
Within the final decade, PEM electrolysis and SOEC techniques have registered a better variety of revealed worldwide patent households than alkaline water electrolysis. Triggered by decarbonization efforts and tight vitality markets, funding in electrolysis is accelerating and likewise shifting focus.
“The open grants for educational work are extra targeted on growing the effectivity of the cell, and on the correct supplies for the electrocatalyst and the membrane,” stated Andras Perl, a scientist at “Entrance” (Vitality Transition Middle ), Middle of Experience Vitality at Hanze College of Utilized Sciences within the Netherlands. “Now the main focus is totally on upscaling, and eventually growing the financial system of electrolysis; the way you make one thing commercially viable from the method, not simply hydrogen. Hydrogen peroxide is an instance.
Main investments now concentrate on cheaper supplies, serial manufacturing, and elevated automation of cell manufacturing. Business observers count on prices to drop however chorus from making price predictions. At this stage, radical adjustments such because the manufacturing of hydrogen immediately from the solar, with out electrical energy, are anticipated to stay on the fringes of the electrolyzer market.
“I do not see the trade embracing it, anytime quickly [soon], know-how based mostly on light-activating electrocatalysts,” stated Perl. “It is greater than only a college analysis research.” The Hanze College scientist defined that scaling the know-how from the lab could be troublesome, as the steadiness of the system might show troublesome to attain.
PEM know-how
European firms are engaged on optimizing their merchandise, primarily specializing in their core companies. “We are actually concentrating on additional bettering our PEM electrolyzer know-how,” stated Manuel Kuehn, head of gross sales for sustainable vitality techniques at Siemens Vitality. PEM electrolyzers function at greater stress and present density, which implies they occupy much less area than alkaline water electrolysis techniques.
Within the subject of PEM electrolyzer manufacturing, just like the know-how that follows it, unique tools producers have give you a one-size-fits-all answer, at the very least for now. They hope to optimize their merchandise as a operate of native demand because the trade turns into extra mature.
“Proper now, we do not have the order amount or workers to work on completely different system configurations,” Kuehn stated. “In some unspecified time in the future, although, it may occur.” The tasks are comparatively small however acquire sensible expertise within the subject. “That is the one approach to enhance our confidence within the long-term sustainability of technical options,” he added. “With higher knowledge, we will help our clients to finance tasks.”
AEM know-how

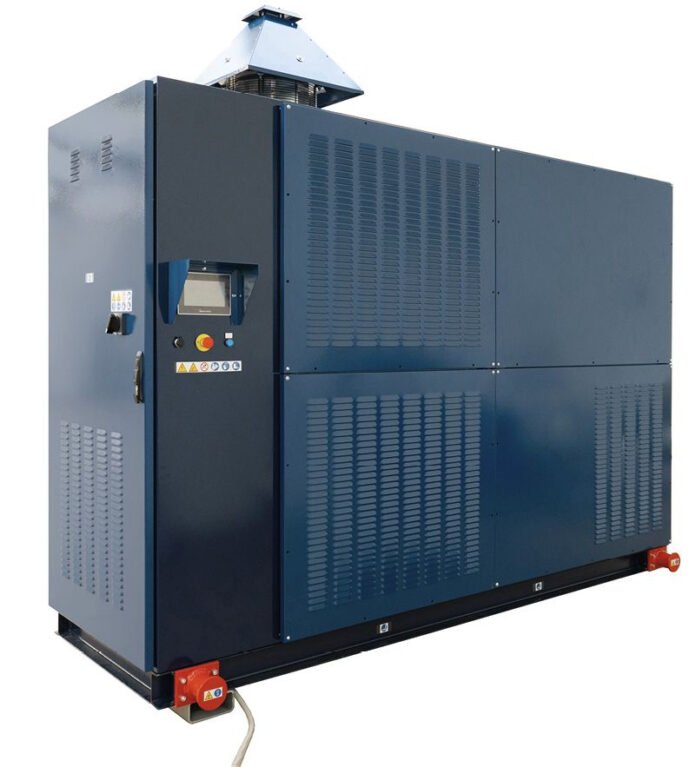

Hyter, a part of the Pietro Fiorentini fuel group in Italy, is betting on AEM water electrolyzers (AEMWE). Set for the industrial stage, the corporate manufactures and markets AEMWEs, all with in-house stack chemistry.
“We’re the corporate that at present produces the most important measurement AEMWE out there available on the market, with our Rigel stack producing 2 Nm3 [normal meter cubed]/hr and the bold goal of perfecting our Sirius stack idea throughout the subsequent few months, producing 50 Nm3/hr of hydrogen alone,” says Massimiliano Masperi, Hyter product specialist.
Masperi stated that, like different AEMWE builders, Hyter skilled technical difficulties with some prototypes however it’s now finalizing an engineering idea. “Disregarding the steadiness of the plant, we reached 4.3 kWh per Nm3 of hydrogen produced, at 25 bar of output stress, and a excessive purity of 99.95% with no purification unit, “stated Masperi, explaining that the AEM know-how exists and can come for 3 causes.
The sort of electrolyzer achieves response efficiencies “which might be very aggressive in comparison with all different applied sciences,” Masperi stated. On the identical time, through the use of a low alkaline electrolyte focus, Aemwe doesn’t want noble metals within the cells. It additionally advantages from cells that may face up to working pressures of as much as 25 bar, thus skipping the primary stage of compression. “So ultimately, the extent price of hydrogen between AEMWE and different applied sciences, in comparison with the dimension and measurement, is decrease,” he added.
Hanze College scientist Perl says the principle downside of AEM know-how is the design and steadiness of the plant, which reportedly wants extra work. Hyter disagreed.
Alkaline electrolyzers
A 2018 paper by Karim Ghaiba and Fatima-Zahrae Ben-Fares discovered that the working – electricity-to-hydrogen – effectivity of alkaline electrolyzers is between 62% and 82%, in comparison with 67% to 82% for PEM techniques. The stable oxide effectivity has not but been clarified.
PEM and AEM applied sciences can scale up sooner than alkaline electrolyzers however the distinction, though related in a laboratory, is much less noticeable in massive installations. The models want a while to regulate the vitality enter, within the case of PEM and alkaline techniques, as a result of the extra elements across the stack want time.
Ulf-Steffen Bäumer, head of the innovation heart, service and digitalization of the German electrolyzer producer ThyssenKrupp Nucera, says, “For those who use renewable vitality in 5 GW functions, it is not going to change in a single half in a second. These fluctuations can final for minutes. So the distinction between PEM and alkaline is restricted to actual functions. Each PEM and alkaline have their strengths.” ThyssenKrupp focuses on alkaline know-how.
Bäumer defined that the corporate has been implementing chloralkali electrolysis because the early Eighties. On this case, the cathode half, the manufacturing of hydrogen, is identical. “This can be a vital benefit for giant tasks,” he stated. “There’s an current manufacturing provide chain. So we’ve got a provide chain of 1 GW already, which is able to improve, within the subsequent few years, as much as 5 GW.
As well as, like AEM techniques, chloralkali electrolysis makes use of restricted quantities of noble metals.
ThyssenKrupp Nucera designs and sells standardized 20 MW modules. “Each consists of electrolyzers, the stack, and a few core tools to shut the electrolytes within the liquid electrolyte cycle, and ship the hydrogen fuel with the discount of the water contained,” added Bäumer. “That is the case in all geographies. Minimal variations are required.”
The tendency for alkaline water electrolyzer know-how is to extend the temperature however ThyssenKrupp considers the temperature improve as a subject for the long run, not for the present optimization efforts. “We function our chloralkali electrolyzers at 90 C, which is sort of excessive,” says Bäumer.
SOEC know-how
From a thermodynamic perspective, the electrolysis course of has a better digital effectivity at a better temperature. The system requires much less electrical energy however requires a warmth supply. Consultants agree that SOEC know-how has a bonus on this regard, working between 600 C and 800 C. Suppliers are actually specializing in growing stability for this temperature vary.
“I do not see many stable oxide electrolyzers,” says Perl. “I’ve seen loads of work on stable oxide gas cells.”
Business insiders say there will likely be room for a wide range of electrolysis applied sciences in the long term, as demand is so excessive that no single know-how, or a restricted variety of firms, can fulfill the urge for food. inexperienced hydrogen tools. On the identical time, merger and acquisition operations are anticipated.
“Many new gamers are creating: new firms coming into this subject, from startups to firms from fields unrelated to chemical vegetation,” stated the Thyssenkrupp’s Bäumer. “It’s a dynamic atmosphere. From a enterprise perspective, there will likely be consolidation, as is going on now. Nonetheless, there are massive gamers however native gamers.
