Swedish researchers used silver alloying to enhance the grain development and crystal high quality of the chalcopyrite absorber, which reportedly compensates for its low bandgap vitality. The scientists created a champion cell primarily based on a ZTO buffer layer.

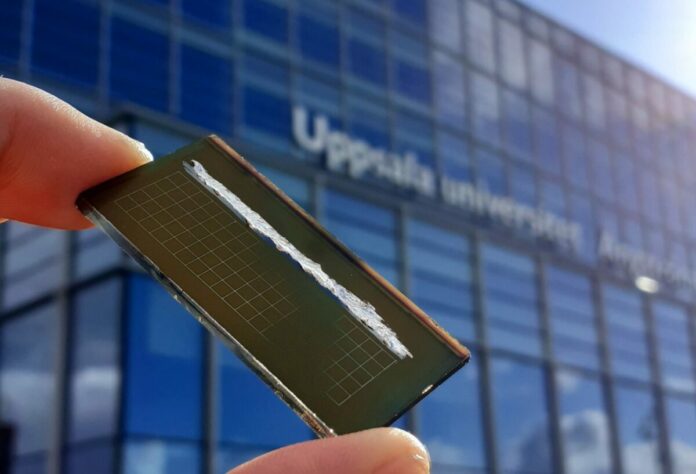

The researchers of College of Uppsala in Sweden produces chalcopyrite (CuGaSe2 or CGSe) photo voltaic cell by utilizing a small quantity of silver (Ag) to combine the machine absorber.
“The objective of our present EU-funded challenge Steady Inorganic TAndem (SITA) photo voltaic cells, is to create a wide-gap chalcopyrite prime cell for a tandem PV machine with a silicon backside cell,” the researcher stated. that’s Jan Keller. pv journal. “So, within the subsequent step we have to transfer the method to clear again contacts. We now have proven the potential to make wide-gap chalcopyrite photo voltaic cells with barely decrease band gaps of about 1.45 eV in extremely clear again contacts in our earlier work.
The usage of silver alloying improves grain development and crystal high quality, whereas lowering dangerous defects and compensating for CuGaSe’s low bandgap power.2 sucker CuGaSe2 has a band-gap vitality of 1.7 eV and has up to now been utilized in photo voltaic cells with a restricted fill issue and open-circuit voltage.
“Along with losses immediately associated to CuGaSe2 layer itself, the recombination on the entrance interface must be pronounced when utilizing a typical cadmium sulfide (CdS) buffer,” stated the scientists, noting that they examined gadgets with CdS buffer layers and layer manufactured from zinc tin oxide (ZTO) grown by atomic. layer deposition (ALD).
The analysis group used a three-stage co-evaporation course of to deposit the absorber combined with silver (AGCS) for a number of samples of photo voltaic cells.
“Provider assortment will increase with rising Ag, increased deposition temperature, and in the direction of a stoichiometric absorber composition,” they stated. “Gentle soaking will increase the fill issue for many samples, probably by easing inside transport obstacles.”
The champion cell created by the scientists is predicated on a ZTO buffer layer, with the machine attaining an influence conversion effectivity of 11.2%.
“That is the very best effectivity ever measured in an ACGS photo voltaic cell with out an anti-reflective coating,” they stated. “Doable explanations for the useful impact of sunshine soaking may very well be the photodoping of the ZTO layer that reduces the efficient barrier top for electrons, or a redistribution of sodium within the heterojunction.”
The scientists stated they plan to make use of clear again contact (TBC) as a substitute of molybdenum (Mo) within the cell to enhance its thermal stability, on account of its anticipated use in tandem gadgets.
They describe the photo voltaic cell expertise of “Silver Alloying in Extremely Environment friendly CuGaSe2 Photo voltaic Cells with Totally different Buffer Layers,” lately revealed in RRL Photo voltaic.
