LiFePO4 battery Datasheet: So, you’re diving into the exciting world of DIY battery building or setting up your own home solar system. That’s fantastic! Whether you’re aiming for energy independence or just a reliable power backup, LiFePO4 (Lithium Iron Phosphate) batteries are likely at the heart of your project. They’re praised for their safety, longevity, and stability.
But here’s the thing: when you buy LiFePO4 cells, they come with a datasheet. And for newcomers, these datasheets can look like a foreign language filled with jargon and numbers. Don’t sweat it! This guide will walk you through the essential specs you need to know, transforming that intimidating document into your DIY superpower.
Why Every Home Solar Enthusiast Needs to Read Their LiFePO4 Datasheet
Think of a LiFePO4 datasheet as the owner’s manual for your battery. It contains crucial information that dictates how you should handle, charge, discharge, and integrate the battery into your system. Ignoring it can lead to:
- Reduced battery lifespan: Improper charging or discharging can significantly shorten your battery’s life.
- Safety hazards: Overcharging or exceeding current limits can lead to overheating or damage.
- Underperformance: Your system might not deliver the power or capacity you expect.
- Wasted money: Damaged batteries mean buying replacements sooner than necessary.
Understanding the datasheet ensures you get the most out of your investment, ensuring a safe and efficient setup.

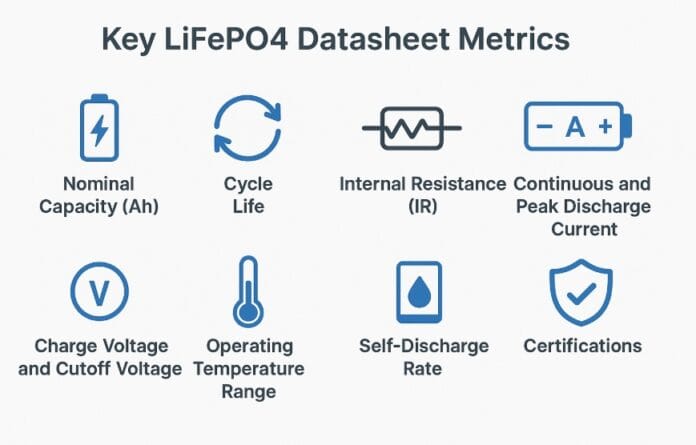

Top 5 LiFePO4 Datasheet Specs You Can’t Ignore for Your DIY Project
Let’s break down the most critical parameters you’ll encounter.
1. Nominal Voltage (V)
The nominal voltage is the standard, reference voltage for a single LiFePO4 cell.
- What it is: For a single LiFePO4 cell, this is typically 3.2V.
- Why it’s important: When you build a battery pack, you connect cells in series to achieve higher voltages (e.g., 12V, 24V, 48V). To calculate your pack’s nominal voltage, you multiply the number of series cells by the nominal voltage of a single cell.
- For a 12V pack, you’ll typically use 4 cells in series (4×3.2V=12.8V).
- For a 24V pack, you’ll use 8 cells in series (8×3.2V=25.6V).
- For a 48V pack, you’ll use 16 cells in series (16×3.2V=51.2V).
- Key takeaway: This value helps you determine how many cells you need for your desired system voltage.
2. Rated Capacity (Ah)
The rated capacity tells you how much energy your battery can store.
- What it is: Expressed in Ampere-hours (Ah), it indicates the amount of current a battery can deliver for one hour. For example, a 100Ah cell can theoretically provide 100 amps for one hour, or 10 amps for 10 hours.
- Why it’s important: This is directly related to how long your battery can power your devices. If you connect cells in parallel, their capacities add up.
- Two 100Ah cells in parallel give you 200Ah of capacity.
- Key takeaway: Higher Ah means more stored energy and longer run times for your applications.
3. Standard Charge/Discharge Current (A) & Max Charge/Discharge Current (A)
These values define the safe operating currents for your battery.
- What it is:
- Standard Charge Current: The recommended current for regular charging. Often expressed as a C-rate (e.g., 0.5C). For a 100Ah cell, 0.5C would be 50A.
- Max Charge Current: The absolute maximum current you can charge the battery at without damaging it. Exceeding this can lead to overheating and degradation.
- Standard Discharge Current: The recommended current for normal operation.
- Max Discharge Current (or Peak Discharge Current): The maximum current the battery can safely deliver for a short period (e.g., 10 seconds for motor startup).
- Why it’s important: Adhering to these limits is crucial for battery health and safety. Charging too fast generates heat, reducing lifespan. Discharging too quickly can also cause excessive heat and voltage sag.
- Key takeaway: Always operate within these specified current ranges to protect your battery and ensure longevity.
4. Charge Cut-off Voltage & Discharge Cut-off Voltage (V)
These are the critical voltage thresholds for your battery’s health.
- What it is:
- Charge Cut-off Voltage (or Max Charge Voltage): The maximum voltage a single LiFePO4 cell should reach during charging. This is typically around 3.65V. Going above this can severely damage the cell.
- Discharge Cut-off Voltage (or Min Discharge Voltage): The minimum voltage a single LiFePO4 cell should be discharged to before being recharged. This is typically around 2.5V. Discharging below this can cause irreversible damage and significantly shorten lifespan.
- Why it’s important: These values are essential for configuring your Battery Management System (BMS). The BMS will cut off charging or discharging to prevent the cells from exceeding these limits, protecting your battery from overcharge and over-discharge.
- Key takeaway: These voltages are non-negotiable for safe and long-term battery operation.
5. Cycle Life
This tells you how many times you can expect to use your battery before its capacity significantly degrades.
- What it is: The number of complete charge-discharge cycles a battery can undergo before its capacity drops to a certain percentage of its original capacity (e.g., 80%). Often specified with conditions, such as “2000 cycles @ 0.5C discharge to 80% DOD (Depth of Discharge).”
- Why it’s important: A higher cycle life means a longer-lasting battery, which is especially important for solar setups that cycle daily. Depth of Discharge (DOD) plays a huge role here. Discharging a battery less (e.g., to 50% DOD instead of 100% DOD) can significantly increase its cycle life.
- Key takeaway: Look for a high cycle life, and consider operating your battery within a shallower DOD to maximize its lifespan.
Nominal Voltage to Cycle Life: Understanding LiFePO4 Battery Basics from the Datasheet
Let’s put it all together. The datasheet provides a holistic view of your battery’s capabilities and limitations.
- Nominal Voltage tells you the building blocks.
- Capacity tells you how big your tank is.
- Charge/Discharge Currents tell you how fast you can fill and empty the tank.
- Cut-off Voltages are the critical safety valves.
- Cycle Life estimates how many times you can use the tank effectively.
By understanding these fundamentals from the datasheet, you empower yourself to make informed decisions for your DIY project. You’ll be able to:
- Size your battery pack correctly: Determine the right voltage and capacity for your needs.
- Select the appropriate charger and inverter: Ensure compatibility with current and voltage limits.
- Program your BMS effectively: Set the critical safety parameters for optimal battery health.
- Estimate the lifespan of your system: Understand the long-term performance of your investment.
Decoding Your First LiFePO4 Datasheet: A Beginner’s Walkthrough (Recap)
Here’s a quick checklist for when you get your hands on that datasheet:
- Find the Nominal Voltage (V): Usually 3.2V per cell.
- Check the Rated Capacity (Ah): This determines your energy storage.
- Note the Standard and Max Charge/Discharge Currents (A): Crucial for safe operation.
- Identify the Charge and Discharge Cut-off Voltages (V): Essential for BMS setup.
- Examine the Cycle Life: Gives you an idea of the battery’s longevity.
Don’t be intimidated by technical specifications. With a little practice, reading a LiFePO4 datasheet will become second nature. It’s the key to unlocking the full potential and safety of your DIY battery and solar projects. Happy building! 🛠️☀️
