Fully printed carbon electrode perovskite solar cell achieves 19.2% efficiency – pv magazine International


German scientists have developed a carbon electrode perovskite photo voltaic cell with a hole-transporting bilayer manufactured from natural semiconductors as an alternative of a standard gap transport layer. They declare that this methodology improves the system’s fill issue and open circuit voltage.

German researchers goal to enhance the efficiency of carbon electrode perovskite photo voltaic cells via a hole-transporting bilayer manufactured from natural semiconductors, as an alternative of a standard gap transport layer (HTL), which they are saying improves their fill issue and open- circuit voltage.

They clarify that changing costly gold, silver, and copper with carbon in perovskite photo voltaic cells typically causes a lack of effectivity and stability points in comparison with benchmark units. “For the printable cells, we intend to switch this expertise to the roll-to-roll fabrication line,” mentioned Tian Du, corresponding co-author. pv journalIt’s famous that the following steps on the highway to commercialization are to make a mini photo voltaic module on glass substrates, then a mini photo voltaic module on a versatile substrate, after which transfer to roll-to-roll fabrication.

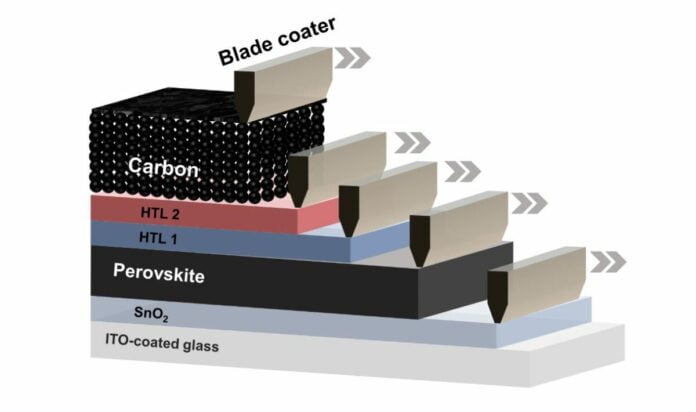

The German staff constructed the cell utilizing a substrate manufactured from glass and indium tin oxide (ITO), an electron transport layer (ETL) primarily based on tin(IV) oxide (SnO2), the perovskite absorber, the hole-transporting bilayer (HTbl) , and the carbon contact. “The HTbL configuration kinds an power cascade on the interface, with the outer HTL 2 strengthening the Ohmic contact with the carbon, whereas the interior HTL 1 reduces the floor
recombination of perovskite,” it defined.

For the absorber, they used a combined cation perovskite often known as (FAPbI3) 0.93 (MAPbBr 3) 0.07. They utilized two layers of successive blade coating which they are saying can maximize gap injection/extraction on the electrode interface whereas minimizing recombination on the floor of the perovskite layers.

They examined the system underneath customary lighting situations and located that it achieved an influence conversion effectivity of 19.2%, an open-circuit voltage of 1.11 V, a short-circuit present of 23.7 A, and a fill issue of 76%. For comparability, a reference cell with a hole transport layer reached an effectivity of 17.3%, an open-circuit voltage of 1.06 V, a short-circuit present of 23.3 A, and a fill issue of 76%.

The bilayer-based cell additionally confirmed secure operation for two,500 hours at 65 C in a nitrogen setting.

The cell is described within the examine as “Environment friendly, secure, and totally printed carbon-electrode perovskite photo voltaic cells powered by hole-carrying bilayers,” printed in Joule. The analysis staff consists of teachers from the Institute of Supplies for Electronics and Vitality Expertise (i-MEET) and the Institute of Micro- and Nanostructure Analysis & Heart for Nanoanalysis and Electron Microscopy (CENEM).

“Our outcomes spotlight that carbon electrodes can enhance the intrinsic stability of perovskite photo voltaic cells with out devoted interfacial modifications,” they concluded.
