The IEA-PVPS has printed a report to assist the photo voltaic trade choose applicable floor radiation fashions and knowledge suppliers based mostly on location and utility necessities.
Photo voltaic irradiance performs an necessary position in managing PV belongings worldwide. Many institutional and industrial suppliers supply modeled photo voltaic irradiance knowledge, making it difficult for customers to find out essentially the most applicable suppliers for his or her particular purposes and places.
In the present day, IEA-PVPS Job 16 is growing a worldwide benchmark of modeled photo voltaic irradiance knowledge to assist the photo voltaic trade make higher selections about photo voltaic useful resource assessments.

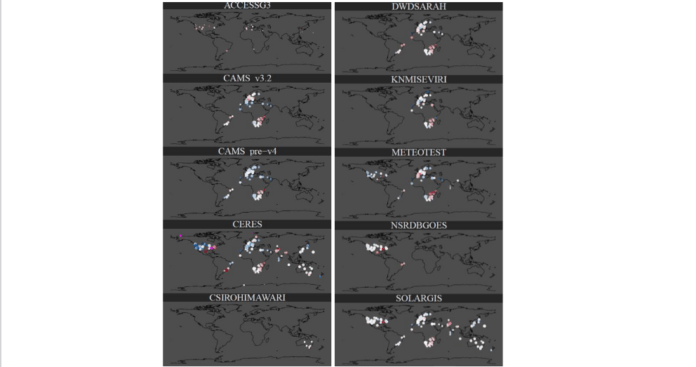

The research supplies a reference level for model-derived direct regular irradiance (DNI) and international horizontal irradiance (GHI) knowledge, utilizing 129 high-quality ground-based radiation measurement stations worldwide from 2015 to 2020. It then compares the DNI and GHI estimates from 10 photo voltaic radiation datasets, whether or not public-domain or industrial, towards this reference level. The datasets are ACCESSG3, DWDSARAH, CAMS v3.2, KNMISEVIRI, CAMS pre-v4, METEOTEST, CERES, NSRDBGOES, CSIROHIMAWARI, and Solargis.
The comparability is made at hourly temporal decision and the efficiency of the modeled info is analyzed in relation to totally different areas and local weather zones.
The IEA-PVPS states that the standard of the reference database is assured by deciding on knowledge based mostly on a “complete set of finest practices and newly applied high quality management procedures. It consists of automated and guide knowledge high quality management exams carried out by a crew of specialists for all stations and ends in flags describing the standard of every time stamp. In whole 129 stations, 31 in Africa, 31 in Asia, 27 in North America, 20 in Europe, 13 in Australia, 5 in South America, and two in Antarctica. The report calculates the imply bias deviation, root imply sq. deviation, and commonplace deviation between the benchmark and every station for the whole 2015-20 interval.
“The benchmark outcomes present noticeable deviations in efficiency between totally different mannequin knowledge units,” the report mentioned. “Specifically, it’s identified that essentially the most correct knowledge set will depend on the positioning and local weather or continent of curiosity. Some stations are tougher for some fashions, as evidenced by the excessive deviations noticed for giant knowledge units in troublesome environments (for instance, excessive mountains or coastal areas).”
The report exhibits that mannequin errors and variations between totally different mannequin knowledge units are increased for DNI than for GHI, as a result of former’s increased sensitivity to aerosols, clouds, and elevation, and different causes.
As for the precise outcomes of the dataset, the research exhibits that CERES has increased deviations than all different satellite tv for pc knowledge, most likely on account of its worse decision. Solargis exhibits the bottom common deviation metrics and can also be one of the best performer amongst many particular person stations, in response to IEA-PVPS.
“From a methodological standpoint, this benchmark emphasizes the significance of the standard of the reference knowledge. With no strict high quality management process, no actual validation will be achieved, with the danger of getting the invalid outcomes,” the researchers concluded.
