Low-cost, portable sun-tracker for offgrid solar

Published:

Mauritian researchers have developed a prototype photo voltaic tracker that will increase present by almost 37%. The machine makes use of a simplified and mechanical monitoring system.

Researchers on the College of Mauritius have designed a monitoring system that can be utilized in transportable, light-weight PV methods to be used in distant areas in tropical climates.

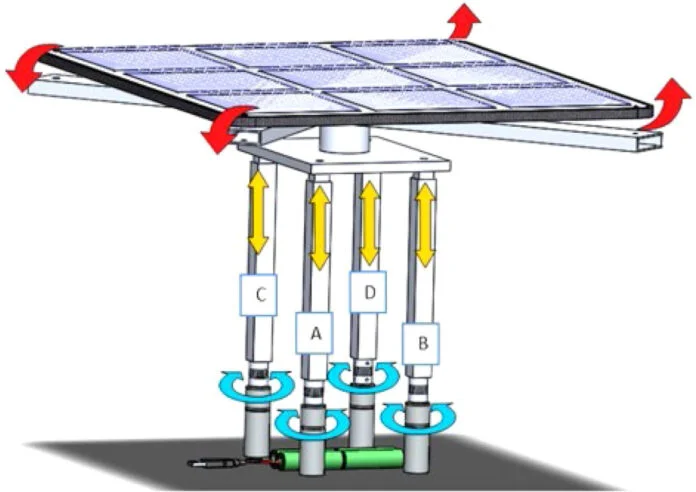

Scientists describe the tracker as a low-cost machine utilizing a simplified and mechanically pushed monitoring mechanism. It may be related to a photo voltaic panel and can have the ability to orient its linear displacement in every of the 4 corners of the module itself and make it rotate in three essential axes. An electrical screw association pushed by DC motors permits the motion of the tracker.

“A motor coupler is used as a connector between DC motors and lead screws,” they stated. “The lead screw has pitch and diameter specs of 1 mm and eight mm respectively.”

By the course and rotational pace of the motors, PV system house owners can obtain their desired tilt angles by exactly adjusting every nook of the photo voltaic panel.

“For clean operation of the photo voltaic tracker, the 4 linear actuators are linked to the principle stage by contemplating a ball-joint system primarily based on aluminum balls with a diameter of 18 mm,” they stated. “To guard the motor parts and digital circuit from hostile climate situations, a light-weight protecting casing produced from aluminum composite panel (ACP) particularly, alucobond is used. The protecting casing has a cross -sectional space and size dimensions of 25 by 25 cm and 20 cm respectively.

The system strikes the panel in keeping with the setting of the solar primarily based on the sensor knowledge transmitted and processed by the Arduino Uno open-source microcontroller, which follows the voltage distinction detected by the corresponding paired sensors as a result of change in gentle depth.

“The paired motors function in synchronization however in reverse instructions to induce a tilting impact on the photo voltaic panels,” they stated. “To realize an optimized orientation of the three precept axes, the remaining two motors additionally function in the identical solution to compensate for the lean of the photo voltaic panel in accordance with the change of sunshine depth as detected by two extra sensors.”

The lecturers constructed a prototype system with a photo voltaic module measuring 450 mm x 170 mm with an influence output of twenty-two.5 W. The analysis staff stated the system was capable of generate 37% extra present than a reference panel with out tracker.

“The proposed machine is deliberate to provide a complete power output of as much as 8100 Wh when operated for 12 hours in a 30-day interval and when reaching the set goal of most output of energy of twenty-two.5 W,” it concluded.

The staff describes the machine as “Low-cost photo voltaic tracker to spice up photo voltaic power uptake in tropical nations,” just lately printed in Vitality Studies.

“Value evaluation and transport testing present that the ultimate designed system meets the initially set targets of this research,” they stated.

The ultimate manufactured construction of the system and (b) the disassembled association.

Picture: College of Mauritius, Vitality Studies, Inventive Commons License CC BY 4.0
