TU Delft scientists have proposed a brand new strategy for off-grid PV-battery-electrolyzer-fuel cell programs in distant areas.
Scientists at Delft College of Know-how within the Netherlands have developed a brand new methodology for the design and element sizing of an off-grid, residential PV-battery-electrolyzer-fuel cell system that makes use of generated hydrogen for long-term power storage. and the battery. for short-term storage.
They declare that the system might be an acceptable resolution in rural areas the place transmission and distribution networks are troublesome to entry.
“The proposed technique adopts a load sizing issue as a key enter parameter, it determines the extent to which the load demand throughout winter is equipped with hydrogen to satisfy the seasonal imbalance,” the researchers mentioned, citing -as the power system is meant to serve an power group consisting of a number of buildings. “As well as, a rule for selecting an applicable load measurement issue to attain specified objectives, reminiscent of self-sufficiency.”

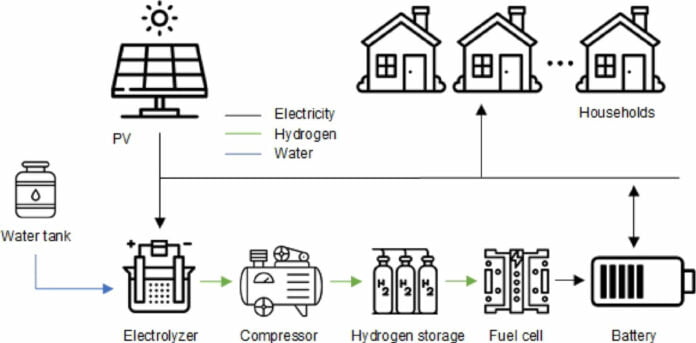

Within the proposed system configuration, the electrolyzer is normally utilized by extra PV energy in summer season seasons to provide hydrogen, which is delivered to a compressor, saved in tanks, and used for the manufacturing of electrical energy by means of gasoline cells within the winter. Not all extra solar energy, nonetheless, ought to be used to provide hydrogen, as this could enhance the Capex of the mission.
The brand new a part of the system, defined by the analysis group, consists in the truth that it divides the load demand in the course of the winter seasons into two elements, the place one is met by PV and battery storage, whereas the opposite is met by hydrogen when the PV technology isn’t out there and the battery state of cost is under 40%.
“The measurement of PV follows the tactic of the annual PV technology comparable to the annual load demand,” the lecturers emphasised, including that the dimensions of the battery will strictly depend upon the times of autonomy of the power system and mission location. “The required technology of PV for producing hydrogen is set by the effectivity of the electrolyzer and gasoline cell.”
The Dutch group says that the system should be sized in such a approach that the lack of load chance (LLP), which is outlined because the ratio between the load demand that can not be met by the power system in a 12 months divided by the full annual load demand, at all times equal to zero. “The decrease the LLP, the extra secure and dependable the power system,” it added.
The lecturers performed a sequence of simulations and located that the system may obtain a stage of power prices increased than the power value within the Netherlands, though it was additionally discovered that the combination of the electrolyzer and gasoline cells in solar-plus- The storage set up can enhance the reliability and safety of the power provide.
“Nevertheless, as know-how advances, the prices related to hydrogen storage tanks and electrolyzers are anticipated to lower, thus growing the effectivity of this kind of power system,” they emphasize. “As well as, the efficiencies of the electrolyzers and gasoline cells will even enhance on the similar time, which will even enhance the general effectivity of the system.”
Wanting forward, the scientists mentioned they wish to examine different cheaper choices than the tank for storing hydrogen and decreasing the price of the system. “In future work, it’s value investigating the usage of warmth to satisfy the warmth wants of end-users to additionally assist them save on warmth prices,” they concluded.
They launched a brand new technique of “A measurement technique for a PV-battery-electrolyzer-fuel cell power system: A case examine in a subject lab,” lately revealed in Renewable and Sustainable Vitality Critiques.
