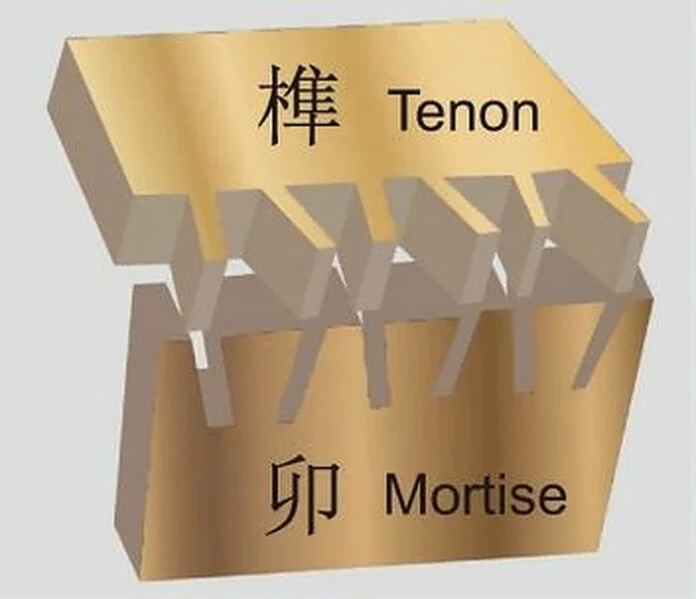

A Mortise-Tenon construction
Picture: Nanjing Tech College (NanjingTech), environmental communication, Inventive Commons License CC BY 4.0
Researchers at Nanjing Tech College in China have designed a perovskite photo voltaic cell that makes use of a Mortise-Tenon (MT) construction to create a big contact space between the perovskite absorber and the opening transport layer (HTL). They declare that it contributes to the advance of cell efficiency and stability.
MT buildings are generally utilized in woodworking for a robust connection between totally different supplies, offering resistance to distortion. Within the proposed configuration, the MT construction consists of a perovskite absorber and a thermally polymerized additive referred to as N-vinyl-2-pyrrolidone (NVP) used for the opening transport layer (HTL).
In accordance with the scientists, NVP maintains a robust interplay with perovskite precursors throughout the spin-coating course of, leading to higher cost transport and high-quality perovskite/NVP movies.
The cell design features a glass/fluorine-doped tin oxide (FTO) substrate, SnO2-based HTM, perovskite absorber with NVP, spiro-OMeTAD layer, and a gold (Au) metallic contact.
Evaluating the efficiency of the system to the reference cell, the champion system achieved an influence conversion effectivity of 24.55%, an open-circuit voltage of 1.187 V, a short-circuit present density of 25.66 mA cm−2, and a fill issue of 80.64 %. The researchers spotlight the advantages of suppressed non-radiative recombination and balanced interface cost extraction as a result of high-quality perovskite crystals and the Mortise-Tenon construction.
In distinction, the reference system achieved an effectivity of twenty-two.91%, an open-circuit voltage of 1.151 V, a short-circuit present density of 25.21 mA cm−2, and a fill issue of 78.94%. .
As well as, the cell with the MT construction exhibits glorious stability, retaining 95% of its preliminary effectivity for 1100 hours. The system has undergone measurement and certification by the High quality Testing Middle for Photovoltaic and Wind Energy Techniques of the Chinese language Academy of Sciences.
They introduced the cell know-how of “Monolithically-grained perovskite photo voltaic cell with Mortise-Tenon construction for stability of cost extraction,” which was lately revealed in Communication in Nature.
“Our work highlights the function of accelerating the contact space of the perovskite layer and HTL and suggests a singular technique to comprehend the interfacial charge-extracting stability in perovskite photo voltaic cells, which could be an essential methodology to realize the environment friendly system of the long run,” they concluded. .
