The novel warmth pump, developed by a analysis group in Israel, consists of a loudspeaker, a resonator, and a thermoacoustic core positioned contained in the resonator. The core features a chilly warmth exchanger, a stack, and an ambient warmth exchanger.
A analysis group of Technion – Israel Institute of Expertise developed a novel phase-change thermoacoustic warmth pump (PTHP) idea for residential and industrial warmth pumping.
“The transformation of the acoustic transformation provides nice potential for a clear and environment friendly cooling know-how, which will be powered by a hybrid supply of both electrical energy or, extra importantly, warmth,” the lead writer of the analysis, Man Ramon, mentioned. pv journal. “The usage of acoustics significantly simplifies machine manufacturing, reduces the necessity for transferring components, and the presence of section change dramatically will increase the facility density of those gadgets, whereas utilizing sustainable supplies.”
The acoustic-driven system makes use of a binary combination of inert and reactive parts as a working fluid that undergoes condensation and evaporation throughout the thermoacoustic cycle. Atmospheric air is used because the inert fuel, whereas water or isopropanol is used because the reactive element.

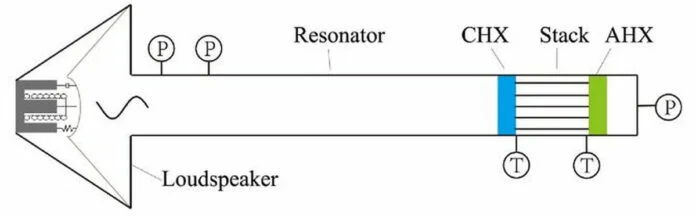

The warmth pump consists of a loudspeaker, a resonator, and a thermoacoustic core positioned contained in the resonator. The core features a chilly warmth exchanger, a stack, and an ambient warmth exchanger.
“The peak and diameter of the resonator are 0.88 m and 47 mm, respectively, and the stack is a bit of 600 cells per sq. inch of ceramic honeycomb with a top of 95 mm,” defined the researchers. “The ambient warmth exchanger is a plate-fin sort, with a spacing of two mm and a fin width of 0.7 mm.”
The system features a chilly warmth exchanger made from 0.5 mm thick nickel-chrome wire and inserted inside a 3D-printed skeleton. It’s used to offer warmth load to the system, which in flip is pushed by a loudspeaker on the resonant frequency of the system, which is 86 Hz.
The system works in 4 steps. Initially, the combination of reactive parts and the inert fuel strikes in the direction of the low strain area. Then the decreased partial strain drives the vaporization of the reactive element taking the latent warmth with it. Within the third step, the combination undergoes the reverse processes of the primary two steps and the reactive element condenses right into a strong, transferring latent warmth. Lastly, the acoustic energy is used to warmth the warmth towards the temperature gradient.
The analysis group in contrast the efficiency of the warmth pump to a reference machine with out section change. It was discovered that the warmth pump can obtain a coefficient of efficiency (COP) of greater than 40% with an air-isopropanol combination at a focus of 0.8.
“Our experimental outcomes present {that a} better cooling energy and a better COP will be obtained with the section change when the temperature distinction is under a important worth, which proves that the section change improves thermoacoustic warmth pumping,” it mentioned. “Nevertheless, if the temperature distinction is elevated to exceed the important worth, the efficiency turns into worse than the equal classical thermoacoustic warmth pump, as a result of the time averaged mass stream reverses its course and carries warmth towards the course of warmth switch.”
The brand new warmth pump idea is introduced within the paper “Environmentally-sound: An acoustic-driven warmth pump based mostly on section change,” revealed in Vitality Conversion and Administration. “The patented know-how is now coming into the preliminary phases of commercialization,” mentioned Ramon, including that additional investigation remains to be wanted for the right realization of its full potential.
