Photovoltaic Trombe wall system to provide heating, electricity – pv magazine International

Array

Published:


Researchers within the Center East have developed a brand new design for vitality techniques that integrates PV energy era with Trombe partitions in buildings. They declare their new system configuration with reflective mirrors affords higher general system effectivity each by way of heating and energy era.

A analysis group in Iraq has mixed photo voltaic PV energy era with a Trombe wall (TW), also referred to as a photo voltaic wall, a expertise used to warmth buildings. TW is a wall building design made utilizing primary building methods that seize warmth from the solar after which distribute it all through the constructing with out using electrical energy or different equipment.

The Photovoltaic/Trombe wall (PV/TW) system is described by its creators as a system that may present scorching water, scorching air, and electrical energy, with the TW system additionally used to chill the PV module temperature. TWs are additionally typically designed with reflective mirrors to enhance vitality manufacturing effectivity and porous supplies, section change supplies (PCM) or nanofluids can be utilized to enhance general system effectivity.

With their work, the scientists intention to seek out the very best angle of inclination of the reflective mirrors with the last word objective of enhancing the thermal and electrical efficiency of the system. “The affect of reflective glass is studied with the introduction of a DC fan and warmth exchanger, with a research of the affect of various climate circumstances for each techniques to examine the features of the photovoltaic Trombe wall,” they defined.

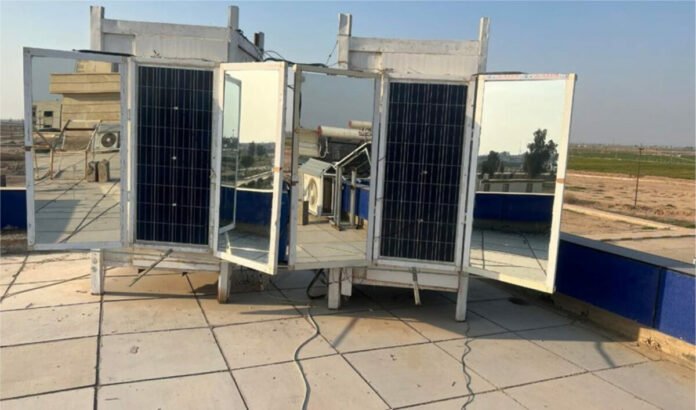

The experimental situation consisted of two rooms with photo voltaic panels and reflective mirrors. One of many two rooms makes use of a warmth exchanger positioned behind the PV modules, whereas the opposite one doesn’t have a warmth exchanger. The mirrors are positioned on the suitable and left aspect of the south face of the system and glued to the bottom utilizing an iron base. Every room has a top of 1.25 m, a top of two m, and a width of 1.25 m.

The researchers examined three completely different inclination angles for the mirrors, which had been 30, 45, and 60 levels, respectively. The efficiency of the system is examined by way of temperature sensors and an Arduino system. Two DC followers are positioned on the high and two on the backside of every room and a water pump is used to flow into the water inside the warmth exchanger.

“{The electrical} and thermal efficiency of the (PV/TW) system is assessed on this research by figuring out the warmth absorption fee of the duct’s air and the warmth exchanger’s warmth absorption fee and calculating the electrical energy that can be produced by the PV panel,” they defined. “The worth of temperature, present, and voltage of every of the PV panels and the temperature of getting into and exiting water, followers, and indoor room are recorded each hour.”

Via their evaluation, the lecturers discovered that the very best angle of inclination for the reflective mirror, when utilizing the warmth exchanger, is 30 levels. They are saying this method configuration can obtain a most every day energy effectivity of 13.86%. “The usage of water passing by way of the warmth exchanger behind the PV panel will increase the general efficiency by decreasing the temperature of the PV panel,” they added, noting that the temperature of the PV panels can also be lowered by the DC fan within the PV/TW system.

The system is described within the research “Optimum angle of reflective mirrors built-in on PV/Trombe wall: An experimental evaluation,” revealed in Power Studies. The group consists of scientists from Al-Kitab College and the Northern Technical College in Iraq. “For future suggestions, it’s proposed to check the affect of phase-change supplies (PCM) for the PV / Trombe system with the presence of mirrors and using a double air duct,” they concluded, indicating instructions for future analysis.
