Rooftop PV system design to improve yield under partial shading – pv magazine International

Published:


Indian scientists have proposed a brand new idea that may enhance the yield of rooftop PV methods below partial shading. This idea combines standard whole cross-tied (TCT) strategies with partial energy processing converters (PPPCs), utilizing resonant switched capacitor converter (RSC) and switched inductor converter (SLC).

Researchers from the Division of Electrical Engineering in India have proposed a brand new PV system design that reportedly reduces mismatch loss and improves energy technology below partial shading situations.

The novel design, described by scientists as a cheap and straightforward to manage, combines standard TCT strategies for PV methods in PPPCs.

“We’re presently engaged on designing the {hardware} for the proposed idea,” stated researcher Subhash Vitthalrao Murkute. pv journal. “TCT is essentially the most most popular and extensively used PV module interconnection within the PV array, as a result of it affords higher efficiency in all forms of partial shading.”

Nevertheless, the capability to extend energy throughout partial shading situations is restricted by bypass diodes and blocking diodes. Superior array reconfiguration strategies enhance the facility output restrict, however in addition they introduce increased system price and complexity.

The analysis group refers to using PPPCs, saying that their software permits for the processing of solely the facility mismatch between the PV modules within the collection string throughout partial shading situations. The proposed system relies on the interconnection of PV arrays utilizing TCT strategies and consists of using a switched capacitor converter for partial energy processing.

“This topology requires two switches for every row of parallel related PV modules within the array,” the teachers stated. “The principle drawback of this design is that it requires lots of {hardware} and in addition a posh closed-loop management for optimum energy level monitoring. (MPPT) management to maximise energy output.

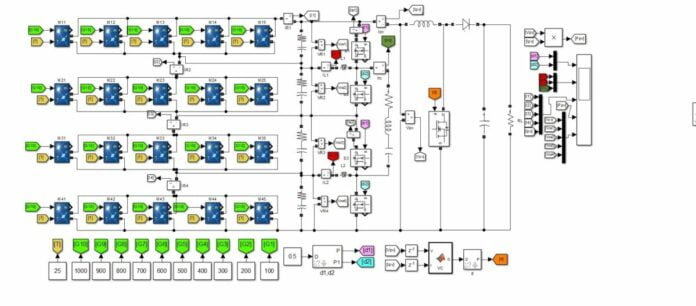

The system makes use of a resonant switched capacitor converter (RSC) mixed with a switched inductor converter (SLC). The researchers say that this explicit mixture reduces the variety of switches to only one per row as an alternative of two.

They examined a 5 kW rooftop PV system with 20 photo voltaic panels below varied partial shading situations. Additionally they in contrast its efficiency with standard TCT and series-parallel (SP) approaches.

“The outcomes present that the facility conversion effectivity of the proposed system is between 95-99 p.c for all shading situations which is increased than SP and TCT,” the Indian staff stated. “It exhibits that the proposed system below any partial shading situation, supplies increased output energy.”

The group stated the facility yield enchancment in comparison with SP and TCT was 4% to 30% and 0.5% to 19% increased, respectively.

“The outcomes present that the proposed hybrid system improves the efficiency of the PV system below all forms of shading situations,” they concluded.

The researchers describe the proposed system design in “A brand new high-performance PV system structure for mitigating partial shading results,” not too long ago printed in e-Prime – Advances in Electrical Engineering, Electronics and Vitality.
