Scientists designed 10.83%-efficient solar cell based on new unleaded perovskite material – pv magazine International


An Indian analysis staff has simulated a photo voltaic cell based mostly on a lead-free perovskite materials often known as KSnI3 and located that the machine can obtain unbelievable effectivity. and energy. The cell is examined with various kinds of electron transport layers and gap transport layers.

Scientists at Pandit Deendayal Vitality College in India have designed a photo voltaic cell utilizing KSnI3 as an absorber materials.

KSnI3 is a lead-free perovskite materials and has been utilized in photo voltaic cell purposes in earlier analysis. “This isn’t the primary try to construct cells based mostly on KSnI3“corresponding writer of the analysis, Grishma Pindolia, mentioned pv journal. “Two extra papers had been revealed in 2023 itself, exhibiting the potential of KSnI3 as an absorbent materials for photo voltaic cells.”

The staff used an natural electron transport layer (ETL) with optimized defect focus and improved interface and doping density for the photo voltaic cell, claiming that utilizing this ETL is cheaper than inorganic ETLs based mostly on supplies akin to titanium oxide (TiO2O).2. “Inorganic cost transport layers (ETLs) require advanced deposition strategies, that are cheaper and the reported effectivity of perovskite photo voltaic cells with natural ETLs is larger than that of inorganic CTLs,” it defined.

The scientists used a numerical module and the SCAPS-1D photo voltaic cell capability sFOR probably the most halfwhich is a simulation software for thin-film photo voltaic cells developed by the College of Ghent in Belgium, to simulate a photo voltaic cell utilizing ETLs based mostly on both phenyl-C61-butyric acid methyl ester (PCBM) or buckminsterfullerene (C60). They tried too natural HTLs based mostly on spiro-OMeTAD, poly-triarylamine (PTAA), polymer Regioregular poly(3-hexylthiophene) (P3HT)PEDOT: PSS, and D-PBTTT-14.

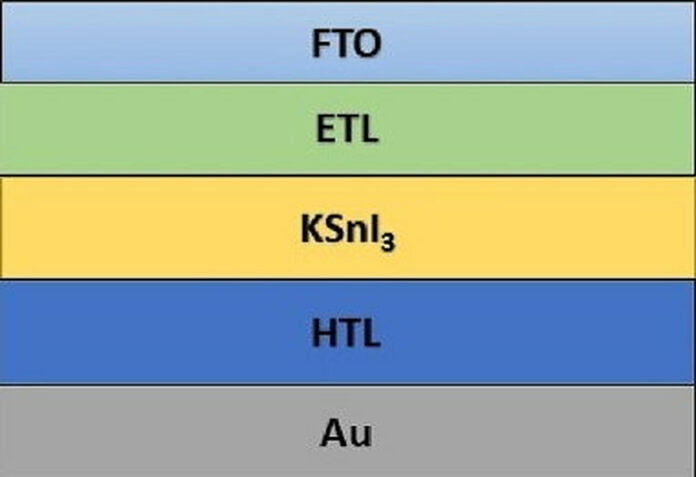

“We optimized the defect focus of the layers and the interfaces, doping density and thickness of the layers, and the shunt and sequence resistance of the machine,” the scientists mentioned, noting that in addition they used a gold (Au) steel contact and a fluorine-doped tin oxide (FTO) substrate for the photo voltaic cell. “The optimized thickness of PTAA, KSnI3and C60 are 30nm, 980nm, and 10nm respectively.

By their simulation, the teachers discovered that the machine can obtain an influence conversion effectivity of 10.83% and a fill issue of 80.8%. It could possibly additionally obtain an open circuit voltage of 0.76788 V and a brief circuit present of 17.44879 mA/cm2.

The machine is offered within the paper “Impact of natural cost transport layers in unleaded KSnI3 based mostly on perovskite photo voltaic cells,” revealed in Optics Outcomes. “The current work might assist design lead-free, non-toxic tin-based perovskite photo voltaic cells sooner or later,” the analysis staff concluded.
