UK researchers have proposed the usage of photovoltaic-thermal power for desalination functions, by a technique based mostly on synergistic electro-thermal coupling mechanisms. They discovered that some system configurations can supply a decrease degree of desalinated water, along with greater effectivity.
A analysis group in the UK is how the mix of photovoltaics and photo voltaic thermal (ST) power can enhance the effectivity and effectiveness of assorted photo voltaic desalination processes. The scientists mentioned their work builds on earlier analysis exhibiting the benefit of mixing PV and photo voltaic thermal power for desalination functions.
“Nonetheless, a lot of the earlier PVT-desalination research have thus far centered on the event of system integration options between typical PVT collectors and desalination modules, and haven’t thought of the alternatives for mechanism of synergistic electro-thermal coupling,” mentioned the scientists, referring to the novelty of their research. “The variation in the usage of warmth and electrical energy in desalination can enhance the efficiency of the system even whether it is operated with the identical photo voltaic power effectivity.”
Researchers make a distinction between desalination applied sciences which might be higher used with electrical energy, and applied sciences that depend on warmth. The previous are reverse osmosis (RO), electrodialysis (ED), mechanical vapor compression (MVC) and capacitive deionization (CDI) options, whereas the latter are multiple-stage flash (MSF) and multiple-effect distillation (MED) ), and membrane. distillation (MD) applied sciences.

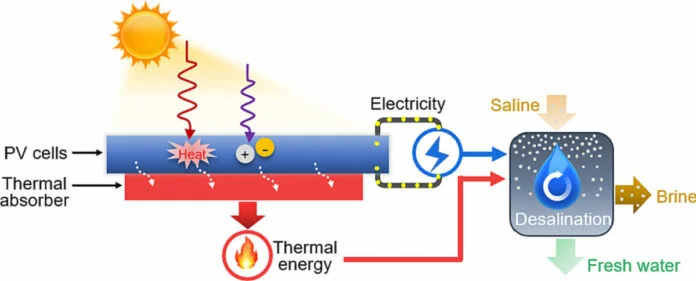

They describe all out there photovoltaic and photo voltaic thermal applied sciences and supply a quick description of the mixing mechanisms of non-synergistically built-in PVT-desalination methods. In addition they famous that their paper is designed to analyze new mechanisms that intelligently use electrical energy and warmth from photovoltaic-thermal (PVT) methods.
Via a preliminary techno-economic evaluation based mostly on efficiency and price metrics, the scientists analyzed some PVT-desalination built-in options and their levelized price of desalinated water (RLCOW). They in contrast the information with numbers from pure PV desalination or ST desalination methods. In addition they assumed that the capital and working prices of desalination methods, accent tools and hydraulic methods have been related between PV-RO and ST-MD methods and different PVT methods.
“Nonetheless, the 2 variables thought of are: (1) the water productiveness of PVT-desalination relative to PV desalination and ST desalination; and (2) the capital prices of PVT methods relative to PV and ST methods,” they mentioned. “Presently, the price of a commercially out there PVT system is often 1.5 to 2 occasions that of an equal PV system because of the extra advanced construction and the requirement for extra methods equipment in PVT.”
Via their evaluation, the researchers discovered that the most typical desalination know-how – reverse osmosis (RO) – can see its RLCOW decreased by 20% when energized with PVT methods in comparison with pure PV installations. .
“Given the dominance of RO in newly put in desalination capability and the outstanding scalability of MD as a thermally pushed desalination course of, the potential water price financial savings point out alternatives for fast optimistic impact, which is able to assist remedy water challenges in off-grid areas,” they acknowledged.
They introduced their findings in “Synergies and potential of hybrid photo voltaic photovoltaic-thermal desalination applied sciences,” revealed in Desalination. The analysis staff consists of lecturers from Imperial School London and King’s School London.
“Additional analysis must be carried out to make clear the electro-thermal coupling mechanism and to develop parametric theories / fashions for the co-use of electrical energy and warmth in several desalination processes,” they concluded.
