German scientists evaluated the efficiency of photo voltaic modules on the balcony related to an e-bike battery and located that this mixture supplied a steady and steady operation for 3 days. They examined two system architectures primarily based on passive and lively hybridization and acknowledged that each system designs supplied passable outcomes.
Scientists from the Offenburg College of Utilized Sciences in Germany intend to combine a commercially obtainable lithium-ion battery for e-bikes with a balcony PV system with the goal of assessing the potential financial savings and progress in self-consumption charges.
Their methodology consists of connecting the battery to the system with a small quantity of further elements and with none modification, which they are saying lowers the price of the system. In addition they decided that, within the proposed configuration of the system, the microinverter doesn’t “know” that it’s related to a battery, which pushes the researchers to analyze the usage of passive or lively measures to keep away from the utmost battery energy level (MPP) monitoring.

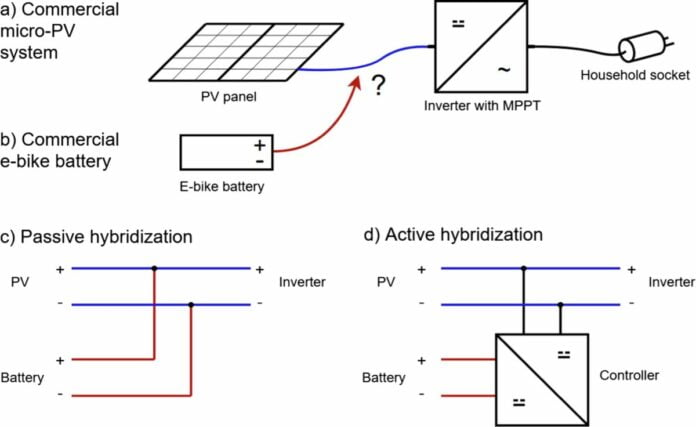

For that reason, the analysis group proposed two completely different system architectures, which it calls passive hybridization or direct connection and lively hybridization or lively coupling.
At first, the battery is related to the panel with no microinverter or cost controller in between. “It’s primarily based on the matching of the PV and the battery’s respective present and voltage traits,” the scientists mentioned, noting that the system is self-regulated and no battery administration system is required. “Throughout battery charging, the system voltage rises and drives the PV in direction of zero present when the battery is absolutely charged. Throughout discharge, a diode protects the PV from very low voltage stage.
The lively structure means the connection of a microinverter and a controller between the battery and PV system, which is ready to actively management the voltages and currents whereas regulating the interplay between the elements. “Right here, one aspect of a controller is positioned in parallel connection between PV modules and inverter,” the lecturers mentioned. “The battery is related to the opposite aspect of the controller.”
The passive design is cheaper than the lively one but in addition much less environment friendly than the MPP-tracked setups, the group mentioned.
Teachers use real-time information and high-resolution artificial load profiles to conduct a collection of simulations through Simulink (MATLAB) to evaluate the efficiency of each programs over a one-year interval. They assume that the system consists of three collection related PV modules every with an output of 100 W, a 36 V electrical bicycle lithium-ion battery with a nominal vitality of 555 Wh and a nominal capability of 15.5 Ah, and a 250 W microinverter with an MPP tracker.
They in contrast the efficiency of two architectures in a balcony PV system with the identical traits however with out storage. “The three programs had been examined on completely different days with completely different meteorological situations,” in addition they defined. “For AC and DC measurements, information is recorded in one-second increments. Time information is recorded in ten-minute increments.”
pv journal print version
Within the newest problem of pv journal we flip the highlight to European photo voltaic with a complete overview of the state of the PV trade throughout the area’s principal markets and a take a look at laws aimed toward driving a photo voltaic rooftop increase. We additionally discover the issue of building a photo voltaic panel recycling trade in Australia, the place trade gossip isn’t serving to issues.
By means of its evaluation, the German staff concluded that the lively and passive programs are technically viable as a result of they’re able to present steady and steady operation for 3 days. “The passive hybrid system is conceptually easy and permits steady operation of the inverter helpful to offer base-load protection within the residence,” it mentioned. “The lively system options intermittent inverter operation however with the next system effectivity.”
The scientists mentioned that the monetary viability of the 2 venture designs ought to be additional investigated, since the price of the battery should characterize an impediment that may be overcome, ultimately, by growing the dimensions within the balcony PV system. “For a variety of use, the system setup ought to be tailored for larger flexibility, which can want to incorporate battery communication,” they concluded.
Their findings are introduced within the paper “Integrating a lithium-ion battery right into a micro-photovoltaic system: Passive versus lively coupling architectures,” revealed in Photo voltaic Power.
