A analysis staff led by Hamad Bin Khalifa College (HBKU) in Iraq has developed a perovskite photo voltaic cell that makes use of an electron transport layer (ETL) primarily based on tin(IV) oxide (SnO2). They are saying this can enhance electron mobility within the system.

The scientists mentioned in “Reasonable temperature deposition of RF magnetron sputtered SnO2-based electron transporting layer for triple cation perovskite photo voltaic cells” that perovskite photo voltaic gadgets typically use titanium oxide (TiO2 i) as the primary contributor to the light-induced degradation seen in perovskite photo voltaic cells.

“In contrast to TiO2 materials, SnO2 could be processed at decrease temperatures utilizing quite a lot of deposition applied sciences, together with resolution processes, electrodeposition, electron-beam, atomic layer deposition and magnetron sputtering,” mentioned the researchers. “In all these skinny fabrication strategies, magnetron sputtering (MS) is without doubt one of the most promising applied sciences because of its benefits associated to cost-effectiveness and uniform bulk SnO.2 skinny movies.”

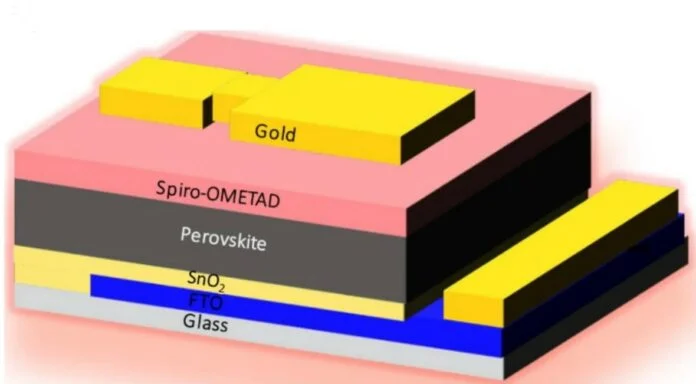

The analysis group sputtered the SnO2 materials by high-energy argon-plasma ions on a substrate fabricated from fluorine-doped tin oxide (FTO) and glass. The cell additionally makes use of an absorber fabricated from a perovskite materials often called Cs0.05M.A0.10FA0.85Pb(I0.85Bro0.15)3a gap transporting layer (HTL) fabricated from Spiro-OMeTAD, and a prime electrode primarily based on gold (Au).

The scientists mentioned that the SnO2 The skinny movie exhibits excessive crystal high quality, as a result of it contains extra oxygen because of an air-thermal-annealing remedy.

“The SnO2 The movies as an alternative present a excessive optical transmittance within the seen vary that’s greater than 80%,” they mentioned. “The thermal annealing course of clearly improves {the electrical} conductivity by considerably rising the electron mobility and this discovering is in line with the rise in crystal measurement after the annealing course of.”

They in contrast the efficiency of the system with a reference cell with an ETL primarily based on SnO2 deposited with out the thermal annealing course of. The latter achieved an influence conversion effectivity of 15.07% and the previous of 17.1%. The brand new cell additionally achieved an open-circuit voltage of 1.045 V, a short-circuit present of twenty-two.01 mA/cm2, and a fill issue of 74.3%, whereas displaying a median of operational lifetime of 200 h.

“Sputtered SnO2 as a result of ETL has been proven to provide a very good PV system efficiency, stability and lifelong and will function a promising route for additional improvement and integration of sputtered SnO2 movies into large-scale and cost-effective perovskite PV modules,” the analysis group concluded.
