2D/3D perovksite solar cell with record-breaking efficiency of 25.32% – pv magazine International

Array

Published:


A Chinese language-Swiss analysis staff has developed a 2D-3D perovskite photo voltaic cell with a world-record energy conversion effectivity. The cell makes use of a 2D perovskite layer on the interface between the perovskite and the outlet transport layer, which the researchers say improves charge-carrier transport/extraction whereas suppressing ion migration.

A world staff of scientists led by Federal Polytechnic Faculty of Lausanne (EPFL) in Switzerland developed a perovskite photo voltaic cell with a 2D/3D heterojunction structure.

“The cell can be utilized for all typical PV methods, in addition to for solar-integrated photo voltaic (VIPV) and building-integrated photovoltaics (BIPV),” corresponding writer of the analysis, Ding Yong, stated. pv journal.

The cell makes use of a 2D perovskite layer on the interface between the perovskite and the outlet transport layer, which the researchers say improves charge-carrier transport/extraction whereas suppressing ion migration. Cells with this structure usually exhibit giant exciton binding energies and it are sometimes extra steady than typical 3D gadgets as a result of safety supplied by natural ligands.

“The interlaminar molecules of 2D perovskites successfully saturate the 3D perovskite floor to cut back floor defects throughout the manufacturing course of, resulting in the formation of a possible vitality offset for field-effect passivation, ” the scientists say.

The group constructed the cell with a substrate product of tin oxide (FTO), an electron transport layer product of titanium oxide (TiO2) and tin(IV) oxide (SnO2), a 3D perovskite layer, a 2D perovskite layer, a spiro-OMeTAD gap transport layer, and a gold (Au)-based steel contact.

To create the 2D perovskite absorber, the lecturers used a precursor referred to as n-butylammonium iodide (BAI), which they declare can increase the activation vitality of the layer to 0.52 eV. “This improve is usually attributed to the bigger migration vitality as a result of giant distance between the interlayer spacings of the 2D perovskite,” they additional defined.

Examined underneath normal illumination situations, the cell achieved an influence conversion effectivity of 25.32%, an open-circuit voltage of 1.159 V, and a fill issue of 83.9%. For comparability, a reference system with out the 2D layer achieved an effectivity of 23.02%, an open-circuit voltage of 1.120 V, and a fill issue of 78.9%.

“The effectivity worth of 25.32% obtained is record-breaking for 2D/3D perovskite-based perovskite photo voltaic cells,” the staff stated, noting that the system was additionally capable of retain 90% of the preliminary its worth after 2000 h of operation.

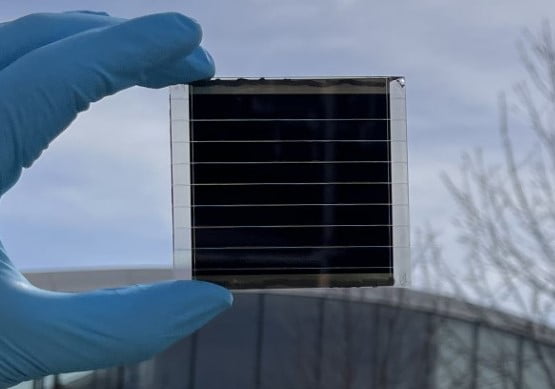

Utilizing this cell, the scientists additionally constructed a mini module that achieved an effectivity of 21.39%, an open circuit voltage of 9.416 V, and a fill issue of 80.3%. “We imagine these modules can obtain effectivity of round 23%,” Yong stated. “Their industrial manufacturing may be anticipated in three years. We estimate the price of the cells at $0.02/kWh, and the vitality payback interval is 6 months.”

The cell know-how is launched within the paper “Visualizing Interfacial Vitality Offset and Defects in Environment friendly 2D/3D Heterojunction Perovskite Photo voltaic Cells and Modules,” revealed in Superior Supplies. The analysis staff was additionally shaped by scientists from the Chinese language Academy of Science (CAS) and the Peking College in China.

This content material is protected by copyright and is probably not reused. If you wish to cooperate with us and need to reuse a few of our content material, please contact: [email protected].
