Assessing shading effect of cleaning robots in solar farms – pv magazine International

Published:


Qatari researchers are wanting on the diploma to which cleansing robots scale back the yield of PV crops within the shade they create on the panels. They discovered that the module orientation has a big impact on the shadow impact.

Scientists on the Qatar Setting and Vitality Analysis Institute (QEERI), a part of Hamad Bin Khalifa College (HBKU), investigated the impact of shadow created by transferring cleansing robots on the efficiency and yield of utility scale photovoltaic crops. .

“Cleansing robots are actually utilized in nearly all PV crops within the desert and, normally, they run throughout the day, making a transferring shadow on the PV modules,” the corresponding writer of the analysis, Benjamin Figgis, talking. pv journal. “We’re doing a subject research in Qatar to measure how the shadow of the robotic impacts the PV output in actual time, and to find out if sizzling spots are created.”

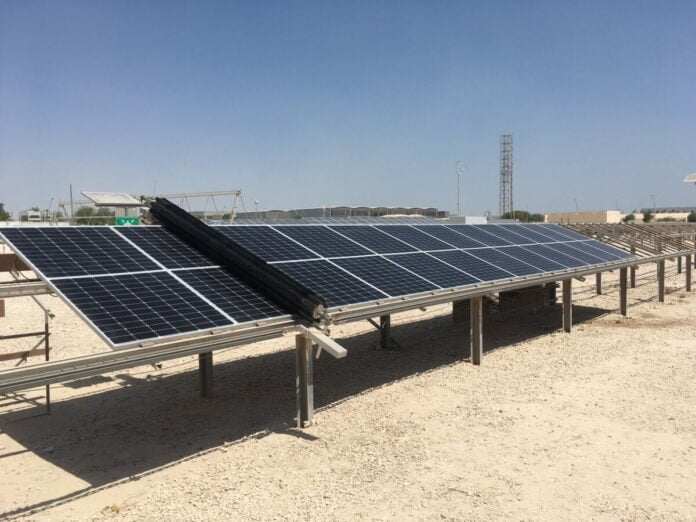

Scientists carried out a sequence of exams beneath clear sky situations utilizing the business robotic Nomadd Desert Photo voltaic Options on completely different PV array configurations on the QEERI testing facility in Doha, Qatar, with a tilt angle of twenty-two levels. They think about three primary elements: module design, module orientation, and robotic velocity.

They decided that the DC present and voltage of the PV string was recorded at 4 Hz, from a couple of minutes earlier than the robotic went by way of a couple of minutes. The present is measured by passing the string DC cable by way of a ten A/75 mV shunt resistor and sensing the voltage drop with the identical datalogger. The string DC energy (P) is obtained by multiplying the voltage and present values.

They defined that the velocity of response of the inverter is a primary crucial issue, as a result of the robotic can simply transfer the modules. Additionally they seen that the robotic wanted the identical time to traverse the thread no matter the kind of module or orientation.

Via their evaluation, the lecturers discovered that the module orientation has an awesome affect on the shadow impact.

“Within the panorama, the string present and the facility decreased considerably when the robotic handed, whereas the strings with portrait modules have been nearly not affected,” said Figgis. “That is nicely defined by the structure of the modules of the bypass diodes. Happily, there are not any indicators of cell sizzling spots, though the bypass diodes warmth up when the robotic stops for a while.”

Figgs additionally defined that, particularly, the inverter’s most energy level tracker (MPPT) algorithm struggles to deal with the robotic’s transferring shadow – generally it will increase the voltage of the string, generally it decreases it, and it takes a minute to the MPP might be rebuilt afterwards. the robotic left the row. “For the set-up we examined, one robotic cross lowered the photo voltaic PV power yield by nearly 0.16% for panorama modules. With portrait modules the loss was nearly zero,” he added. which is defined.

The researchers additionally discovered that the facility discount was higher for full-cell modules than for half-cut panels, and that heating of the bypass diode in a module occurred when the robotic stopped the module, however not whereas the robotic was transferring. .

“The important thing classes are that if a PV plant is designed with cleansing robots in thoughts, their shading losses may be minimized by the structure of the portrait module, which is normally the case with single-axis trackers ,” Figgs concluded. “For panorama programs, it is best to run the robots at evening, even earlier than the dew has shaped.”

The analysis findings seem within the research “Impact of cleansing the transferring shadow of the PV string robotic,” printed in Photo voltaic Vitality.

The identical group printed in January a research that supplied an evaluation of the diploma to which cleansing robots might threaten the bodily integrity of photo voltaic panels. They discovered that the cleansing machines had little or no impact and that modules of the identical dimension tended to point out roughly the identical quantity of vibration.
