Slovenia-based photo voltaic panel producer Bisol has launched a brand new line of clear photo voltaic modules for functions in agrivoltaic tasks and photo voltaic carports.

“We determined to supply the smaller 320 W (BDO) and bigger 410 W (BBO) variations with particular matrixes that present aesthetically pleasing and cost-effective options for numerous residential and business tasks,” an organization spokesperson stated. pv journal. “Excessive-quality clear backsheets present elevated bifacial acquire from the rear aspect of the module as much as 40%, relying on the floor behind the module.”

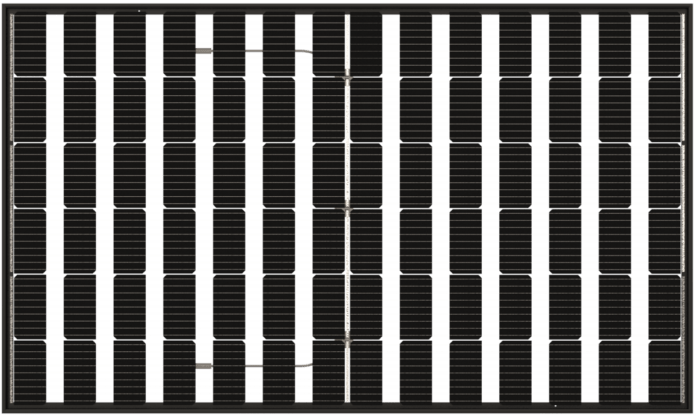

The smaller product measures 1,722 mm × 1,134 mm x30 mm and weighs 22 kg. It consists of 84 half-cut monocrystalline PERC bifacial cells, every measuring 182 mm x 91 mm. The panel has a entrance energy conversion effectivity of 16.4%, an open-circuit voltage of 31.0 V, and a short-circuit present of 13.7 A.

The bigger module measures 2,094 mm × 1,134 mm × 35 mm and weighs 26 kg. It’s constructed with 108 half cells and achieves a entrance effectivity of 17.3%. The open-circuit voltage and short-circuit present are 39.6 V and 13.3 A, respectively.

Each merchandise have an working temperature vary of -40 C to 85 C, with an working temperature coefficient of -0.34% per diploma Celsius. They function 3.2mm excessive transparency, tempered glass surfaces and an IP 68 rated junction field. The utmost system voltage is 1,500 V.

The brand new merchandise include a 25-year linear energy output guarantee and a 15-year product guarantee. They expertise a discount of three% within the first 12 months, with the ultimate energy output after 25 years assured to be a minimum of 85% of the nominal output energy.
