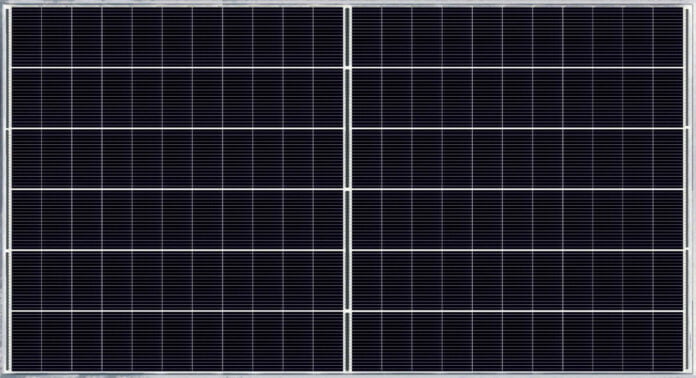

TOPBiHiKu7 photo voltaic module
Picture: Canadian Photo voltaic
China-based module producer Canadian Photo voltaic introduced its 700 W bifacial TOPCon photo voltaic modules this week at Intersolar Europe in Munich, Germany.
TOPBiHiKu7 panels have 210 mm cells and can be found in six variations, with nominal energy from 675 W to 700 W, and an influence conversion effectivity of 21.7% to 22.5%. The open-circuit voltage is from 46.9 V to 47.9 V and the short-circuit present is eighteen.24 A to 18.49 A. They’ve an effectivity vary of 26.1% to 27.0%, with a bifacial achieve of 20 %.
“Canada’s TOPCon modules will improve the power yield of PV programs and supply probably the most aggressive stability of system (BOS) price financial savings and stage price of electrical energy (LCOE) for solar energy crops , in comparison with PERC modules,” the corporate stated. .
The double glass panels measure 2,384 x 1,303 x 33 mm and weigh 37.8 kg. They characteristic 2.0 mm heat-strengthened glass, with an anti-reflective coating and one other 2.0 mm glass layer on the again. The modules have IP68 junction containers and anodized aluminum alloy frames. They will function with a system voltage of 1,500 V and at temperatures between -40 C and 85 C.
The temperature coefficient is -0.29% per diploma Celsius. Canadian Photo voltaic claims it ensures “higher efficiency beneath sizzling environments in comparison with mainstream merchandise available on the market.”
The PV panels have a 12-year product guarantee and a 30-year energy output guarantee. The annual linear degradation in 30 years is 0.4%, whereas the degradation within the first yr is proscribed to 1.0%.
In December 2022, Canadian Photo voltaic stated it will start mass manufacturing of TOPCon photo voltaic modules within the first quarter of 2023.
