The Fraunhofer Institute for Photo voltaic Vitality Programs (ISE) has changed the 2011 UL 1699B commonplace with the brand new IEC 63027 commonplace for inverters, which incorporates arc fault detectors. The aim is to enhance the protection and effectivity of inverter expertise.
in Germany Fraunhofer ISE introduced that it has printed a brand new worldwide check commonplace for inverters that features arc fault detection gadgets.
The analysis institute mentioned the brand new IEC 63027 commonplace will change the UL 1699B commonplace issued by the Illinois-based certification physique Underwriters Laboratories (UL) in 2011, when arc fault detectors turned necessary in the US.
“The brand new IEC commonplace eliminates among the weaknesses of the outdated US commonplace, which doesn’t simulate actual operation sufficiently,” the institute mentioned. “In consequence, many arcs are usually not detected, as a result of they don’t attain the alarm threshold values or as a result of false alarms are triggered.”
In keeping with Fraunhofer ISE, undetectable arcs and false tripping in photo voltaic inverters can solely be prevented with a sensible check setup that makes use of an digital DC supply as a PV simulator as an alternative of an actual one. PV modules. “The present flows from the PV simulator to the inverter via a connection level that may be exactly reduce off,” defined the specialists at Fraunhofer ISE.

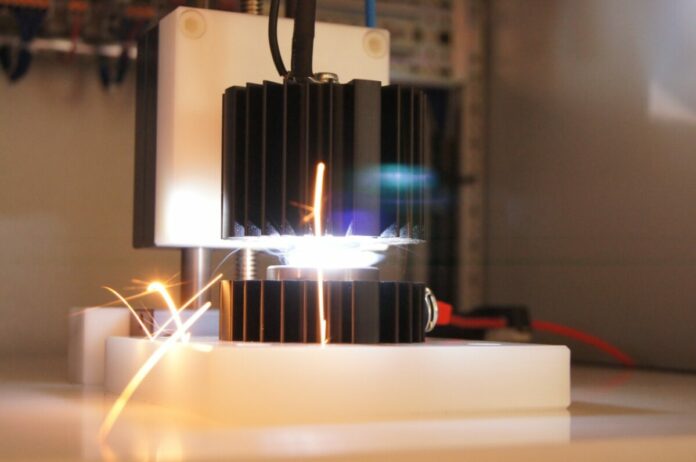

“The connection level is a ball-and-socket joint consisting of two tungsten electrodes, that are pulled at a set velocity, thus igniting a attribute arc.”
The check setup additionally considers the electrode distance and velocity, whereas utilizing a filter community between the inverter and the simulated PV system.
“The time till the inverter switches off is decisive for the proper functioning of the arc detector: The shorter the arc burning time, the decrease the vitality enter on the fault contact level, i.e., the quick extinguishing occasions that reliably forestall fires from beginning,” added the scientists, noting that the arc fault detector efficiently handed the check with vitality values between 200 and 750 joules, which switched off inside 2.5 seconds. “Computerized reconnection after detector tripping is allowed 4 occasions inside 24 hours. After the fifth time it should be linked manually. “
The institute says that the brand new check bench is now deployed in TestLab Energy Electronics, the place it already exams gadgets for DC voltages as much as 1,500 V.
“We’ve got expanded the vary of providers provided by our TestLab Energy Electronics, the place we carry out accredited exams in accordance with grid codes, effectivity measurements and impedance spectroscopy exams of inverters,” mentioned Steffen Eyhorn , head of TestLab Energy Electronics.
