A world staff of researchers has designed a brand new hybrid photovoltaic-liquid air power storage (PV-LAES) system. Their financial analysis for the proposed 2 MW PV-LAES venture reveals that the funding payback interval can be inside 10 years, and the amassed web revenue will attain $2.2 million from a life-cycle perspective.
Researchers from Sichuan Regular College in China and the College of Cambridge within the UK are investigating the techno-economic feasibility of a brand new hybrid system that integrates photovoltaics and liquid-air power storage (LAES).
Conceived for large-scale functions, LAES programs retailer electrical energy within the type of liquid air or nitrogen at cryogenic temperatures – beneath -150 C. They cost by utilizing extra electrical energy to compress electrical energy. and liquefaction of air saved as a liquid at temperatures approaching -196 C. Upon discharge, the liquid air heats up and turns into a pressurized gasoline that drives a turbine to generate electrical energy.

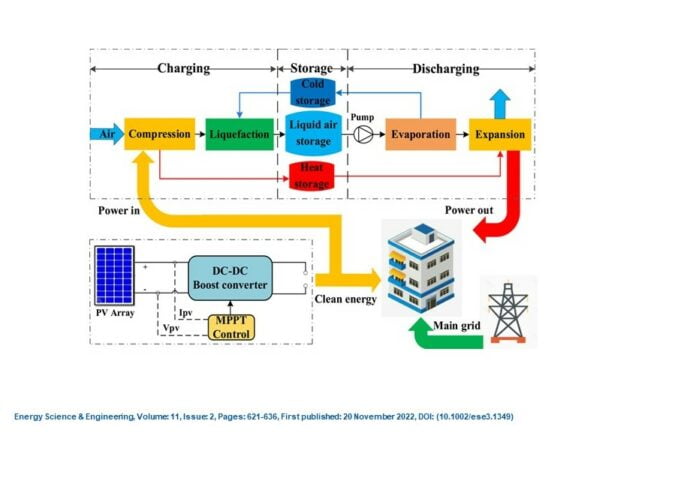

The proposed system consists of a 2 MW native PV energy plant with a most energy level monitoring (MPPT)-based increase converter. The set up is able to producing low-carbon electrical energy with low fluctuations between 12.89 and 12.99 MWh a day
The LAES unit makes use of the surplus energy from the PV plant and pays for the electrical energy for the native load with inadequate energy ranges. The power storage period of the off-peak time system is 9.13 hours, and the height time power launch period is 6.27 hours.
For the proposed PV-LAES venture, the outcomes present that the surplus renewable electrical energy of 6.73 MWh despatched by LAES is used for producing 27.12 tons of liquid air for power backup in the course of the day. There, the LAES unit has a round-trip effectivity of 47.4% and may ship versatile energy compensation to the load at evening.
In the meantime, the electrical energy demand from the primary grid will lower considerably in a day from 12.78 to three.33 MWh. Primarily based on these information, the annual electrical energy saving is estimated to be 3449.25 MWh, and the corresponding carbon emission may be lowered by 2607.63 tons.
Concerning financial efficiency, the PV-LAES system presents a dynamic payback interval of 9.33 years and an amassed life cycle web revenue of $2,260,011, the researchers discovered.
They focus on their findings in “Hybrid photovoltaic-liquid air power storage system for deep decarbonization” revealed in Power Science and Engineering.
“The proposed PV-LAES scheme may be economical from a life cycle perspective, and may understand the versatile interplay of native renewable power to realize an built-in low-carbon energy technology and storage programs,” the researchers concluded.
