From pv journal 02/23
The potential power of the apocryphal Seventeenth-century apple that hit Isaac Newton on the pinnacle helped create his concept of gravitation. It wasn’t till the early twentieth century, nevertheless, that the primary main gravity-based battery was developed in Switzerland, a pumped-storage hydroelectricity system.
A “gravity battery” shops the potential power of a cloth or liquid utilizing top and weight. With pumped hydro, water is pumped into the upper of the 2 reservoirs when power is plentiful, to later be launched downstream by way of a turbine.
Pumped hydro is the most typical utility scale storage know-how and, based on Australian Nationwide College Professor Andrew Blakers evaluation in Progress in Vitality, includes 96% of worldwide storage capability and 99% of storage power quantity.
Holy grail
Whereas lithium-ion batteries and different electrochemical techniques have overcome short-term power storage, their costly uncooked supplies can not present the long-term power storage (LDES) required for power switch. . Solely LDES can absolutely cowl the intermittent cycles of photo voltaic and wind energy, filling the gaps for twenty-four/7 renewable power. Analyst McKinsey & Firm initiatives LDES know-how may attain 1.5 TW to 2.5 TW of capability by 2040.
Pumped hydro, nevertheless, requires important capital and infrastructure and is proscribed by topography appropriate for reservoirs of various ranges. The initiatives even have a major affect on the surroundings. These limitations are driving innovation in gravity battery growth, and Oliver Schmidt, an Imperial Faculty London researcher and founding father of analysis hub Storage Lab, describes scalable LDES as “the holy grail.”
The primary requirement of gravity batteries is weight, and that may be low cost. “For this reason I feel gravity-based storage can play an enormous function, if somebody can discover a technique to replicate the idea of pumped hydro in a extra distributed approach, ” mentioned Schmidt.
Vitality Vault
Switzerland’s Vitality Vault could be the furthest down the observe. In March 2022, with US-based Atlas Renewable Vitality and a $50 million stake from South Korean smelter Korea Zinc, Vitality Vault began a 25 MW/100 MWh challenge close to Shanghai.
The preliminary “EVx” system goals to raise 30-ton blocks utilizing a six-arm crane. Vitality Vault Chief Industrial Officer Marco Terruzzin mentioned pv journal the system developed to look extra like a multi-storey automobile park, with 35-ton blocks as a substitute of automobiles, every working systematically to retailer and launch power.
Vitality Vault and Mexican cement enterprise Cemex have developed blocks that may use native supplies together with soil, recycled coal ash, waste mine tailings, or lifeless wind turbine blades.
Robert Piconi, co-founder and CEO of Vitality Vault, stories a “very optimistic” response in China and says that Atlas plans as much as 6 GWh of Vitality Vault gravity storage there. The Swiss enterprise is constructing an 18 MW/36 MWh system in Texas, with Italian power firm Enel Inexperienced Energy, which is anticipated on-line in the summertime.
“I feel gravity [batteries] has a larger function for the longer-term market,” mentioned Piconi, though “there aren’t many gravity power storage corporations available in the market that manufacture at scale. There are 4 or 5 different gravity corporations however none have superior with the primary seed or government-provided funding. So there’s plenty of work to do. “
Deep cost
Gravitricity in Scotland is underground. Its GraviStore system desires to make use of ex-mine shafts for block-based storage. Gravitricity suggests the usage of “MagnaDense,” a high-density combination materials that may be a confirmed ballast within the trade.
Peak and weight are the one variables in a gravity battery, says Gravitricity Industrial Director Robin Lane. “If you wish to generate, retailer, and return attention-grabbing quantities of electrical energy, you need to cope with weights of a whole lot of tons, and you need to throw the weights a major distance, most lower than 500 meters.”
The one cost-effective reply, Lane argued, was exploiting caves or disused mineshafts. “By retaining it underground, we’re doing it cost-effectively, through the use of present infrastructure we’re doing it the proper approach,” he mentioned. “There are a whole lot, if not 1000’s of decommissioned mine shafts on the planet. Hotspots embody South Africa, Australia, Chile, and Europe, he mentioned, including, “It is an amazing story, utilizing the previous one [coal] power system for the brand new.”
Vitality Vault’s Terruzzin says such techniques are sure by mine dimensions.

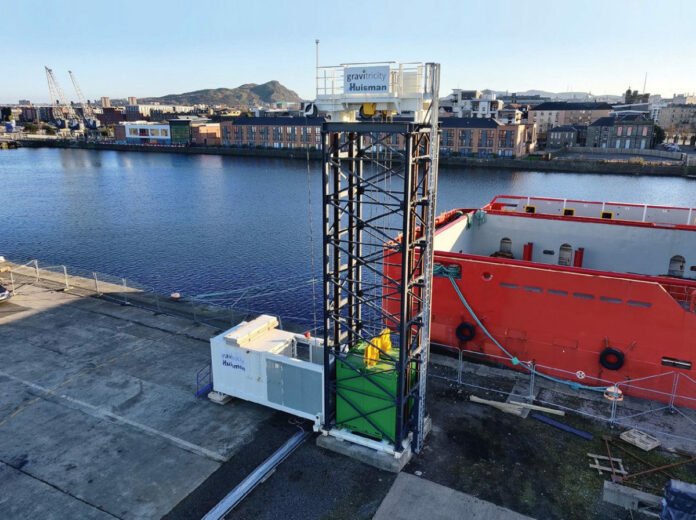

Gravitricity has demonstrated a 250 kW pilot in Edinburgh, with two 25-ton weights, and needs to construct a full-scale mine challenge in Staříč within the Czechia. a UK demonstrator for underground hydrogen storage, with structural engineer VSL Techniques UK.
The Vitality Vault, too, is numerous.
“Underground areas are extremely able to probably offering grid-scale power storage,” Lane mentioned. “We imagine these capabilities are past gravity.” The Scottish enterprise’s H2 FlexiStore system includes digging steel-lined rock shafts close to renewables websites and industrial hydrogen customers to retailer as much as 1,000 tonnes of compressed gaseous hydrogen per shaft. Lane mentioned pv journal Storage of gravity shafts may additionally be attainable.
Piston energy
US-based Gravity Energy proposes a gravity battery with a closed loop water-filled shaft the place a piston of strengthened stone is raised by pumped water after which lowered, pushing the water right into a penstock and thru a turbine.
Govt Thomas Mason says the Gravity Energy Plant doesn’t require completely different elevation reservoirs or cables and winches. He says the extent price of storage for a 200 MW/1.6 GWh system producing for eight hours is lower than 1 / 4 of the 2020 determine for lithium-ion batteries.
Gravity Energy raised $10 million for a 1 MW demonstrator in a missile silo, with assist from Inflation Discount Act incentives. “It should display the general idea and supply invaluable knowledge from operational testing,” Mason mentioned.
South African scientists final month proposed a gravity battery that mixes the concepts of Gravity Energy and Gravitricity. Researchers at Stellenbosch College have proposed a linear electrical machine system in disused mines, the place the machines vertically transfer strong lots or pistons. Stellenbosch researcher Morris Mugyema says that “the power capability of an entire system is elevated by including facet shafts, which makes it versatile and simple so as to add extra capability” .”
The hills are alive
UK-based RheEnergise adheres to the ideas of pumped hydro with a Excessive-Density Hydro system however with a fluid 2.5 occasions denser than water.
Chief Innovation Officer – and professor of renewable power on the College of Exeter – Richard Cochrane says the corporate proposes “a closed-loop system,” with an “environmentally benign fluid.”
Cochrane stored the composition of the liquid secret nevertheless it was identified to be of widespread origin. “It is unbelievable what number of extra websites are opening up with greater density liquid so as a result of the liquid is 2.5 occasions denser, you need to use a hill that is 2.5 occasions smaller,” he mentioned. .
The RheEnergise system additionally requires smaller pipes and generators and its dimension means it may be simply built-in into industrial, mining, and inhabitants facilities.
Cochrane says a Canadian demonstrator was a hit and they’re now in search of a UK website. Preliminary initiatives will likely be linked to hilltop photo voltaic or wind farms that might profit from co-located storage. The professor mentioned the fluid utilized in concept can be denser with out changing into too viscous for the generators.
Ranking choices
Australia’s Fortescue Future Vitality and UK-based Williams Superior Engineering’s “Infinity Prepare” gravity battery – highlighted within the November 2022 version of pv journal International – includes a 2.5 km iron ore practice utilizing gravity braking to load 70 MWh batteries because it travels down from Fortescue’s Pilbara mine to the docks. The batteries then have sufficient cost to get the practice transferring.
US-based Superior Rail Vitality Storage is exploring the same, smaller idea for driving heavy blocks uphill.
Because the power transition seems to be to speed up, the burden of anticipation for innovators within the gravity space for storing is growing. Nonetheless, there’s nonetheless no clear challenger to pumped-hydro’s heavyweight crown.
