NGK Insulators has deployed 1 MW/5.8 MWh of NAS batteries below an illustration undertaking to evaluate the efficiency of stationary storage at a web site operated by Korea Electrical Energy Corp. (KEPCO).

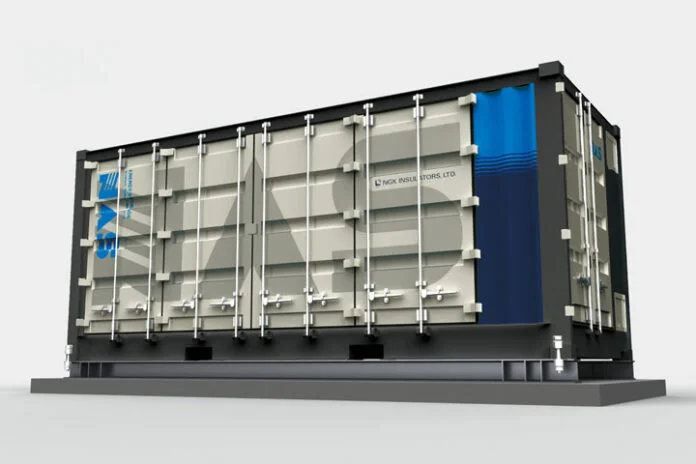

Japan’s NGK Insulators has begun working 4 250 kW/1.450 MWh sodium sulfur battery containers on the KEPCO testing web site in Naju, South Korea.
The ceramic producer and storage supplier mentioned its flagship NAS battery system will probably be used below an illustration undertaking for evaluating the efficiency of stationary storage batteries, the outcomes of which is able to set efficiency requirements for giant power storage batteries within the South Korea.
NAS batteries include sodium because the unfavourable electrode and sulfur because the optimistic. A beta-alumina ceramic tube acts as an electrolyte, permitting solely sodium ions to move by means of.
Upon discharge, sodium is oxidized, and sulfur is lowered to polysulfide. The charging step recovers metallic sodium and elemental sulfur.
NAS batteries are rated for 4,500 full discharges or 15 calendar years of life. The battery runs at temperatures of round 300 C. Each parts are in a liquid state when the battery is in use.
The batteries are appropriate for long-term purposes and might discharge at full output for six hours, or at one-third of full output for as much as 18 hours.
NGK says that the NAS batteries make a 24/7 energy provide that may be with solar energy for 6-10 hours and a NAS battery for 14 to 18 hours in a 3rd at rated output.
NAS batteries have obtained certification primarily based on UL 1973 (cell and module degree) and a take a look at report primarily based on the UL 9540A normal.
The KEPCO undertaking will not be the primary for NGK in South Korea. In 2020, a NAS battery was equipped to the electrical energy methods producer G-Philos for the nation’s first power-to-gas (P2G) demonstration undertaking, which was carried out by Korea Midland Energy Co. , Ltd. (KOMIPO) in Sangmyung Wind Mountain, Jeju Island.
In accordance with NGK, NAS batteries are put in in additional than 250 areas worldwide, with a complete output of greater than 720 MW and a complete put in capability of roughly 5 GWh. It’s used for varied purposes, together with peak slicing by means of load balancing and emergency energy provide, in addition to strengthening renewable power and constructing sensible grids.
Final yr, NGK Insulators entered the perovskite PV module enterprise with the acquisition of an unspecified stake in EneCoat Applied sciences, a Kyoto College PV know-how spinoff. Enecoat develops perovskite photo voltaic cells by means of a moist course of primarily based on natural chemistry, a low-temperature coating course of, and roll-to-roll printing.
