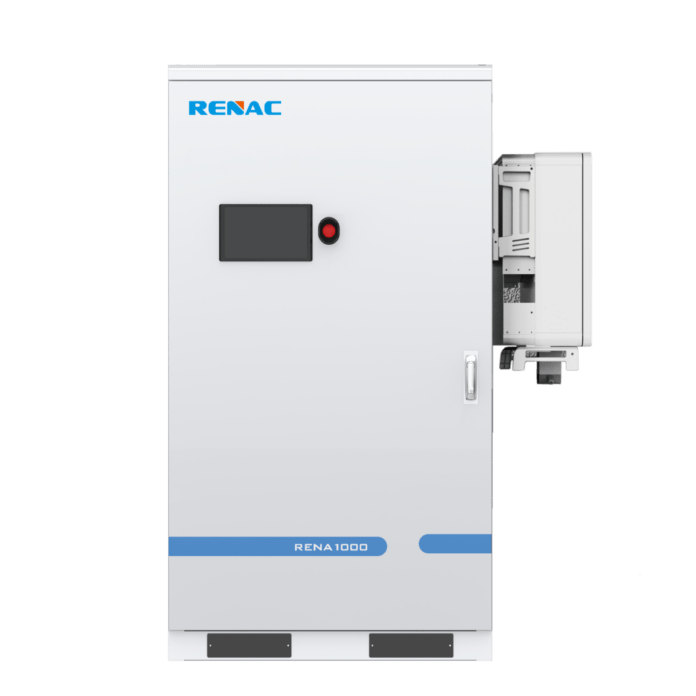

Renac Energy demonstrated its new all-in-one vitality storage system with inverters and battery modules on the current SNEC commerce present in Shanghai, China. The programs are designed for business and industrial (C&I) functions.

The China-based storage and inverter producer mentioned the 110.6 kWh, 460.8 V battery comprises lithium iron phosphate (LFP) battery cells. It supposedly has a life cycle of greater than 6,000 cycles.

The battery measures 1,365 mm x 1,425 mm x 2,100 mm and weighs 1.2 tons. It has IP55 out of doors safety and operates in temperatures from -20 C to 50 C. The utmost working altitude is 2,000 meters. The system permits distant real-time information monitoring and placement of pre-alarm faults, mentioned the producer.

The inverter has an influence output of fifty kW. It has three most energy level monitoring (MPPTs), with an enter voltage vary of 300 V to 750 V. The utmost PV enter voltage is 1,000 V.
