Swiss scientists used a small quantity of silver to combine the absorber right into a thin-film CIGS photo voltaic cell. They are saying this course of helps to enhance effectivity, open circuit voltage, and fill issue, whereas compensating for the low bandgap of the CIGS layer.

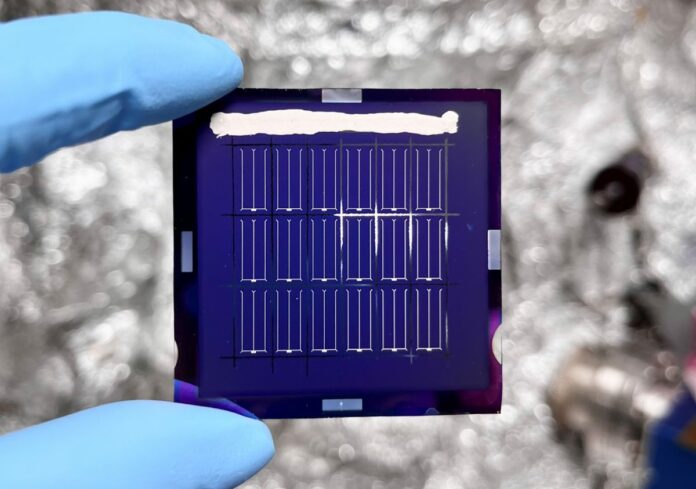

Scientists from the Federal Laboratories for Supplies Science and Know-how (EMPA) in Switzerland have constructed a thin-film photo voltaic cell primarily based on copper, gallium, indium and selenium (CIGS) by utilizing a small quantity of silver (Ag) to combine the CGIS absorber. They declare that the gadget can be utilized for tandem photo voltaic cell purposes.
“The quantity of Ag in CIGS may be very small; solely about 20nm or thinner Ag precursor layer for a complete CIGS thickness of about 3000 nm,” mentioned researcher Maximilian Krause. pv journal. “However the advantages by way of structural and digital properties to enhance photovoltaic conversion effectivity are excessive.”
The researchers say that using silver improves grain development and crystal high quality, whereas decreasing dangerous defects and compensating for the low bandgap vitality of 1.0 eV within the CIGS absorber. The researchers used a precursor layer methodology to deposit Ag on the absorber, in a three-stage strategy of co-evaporation of soda-lime glass.
“The absorbers are completed with a 35nm cadmium sulfide (CdS) buffer layer deposited in a chemical tub,” they defined. “Photo voltaic cells don’t transmit warmth mild.”
They constructed a cell with an space of 0.57 cm2 and an antireflective coating primarily based on magnesium fluoride (MgF2). Examined underneath commonplace lighting situations, the very best efficiency gadget exhibits an influence conversion effectivity of 18.7%, an open-circuit voltage of 602 mV, a short-circuit present of 42.1 mAcm .-2and a fill issue of 73.9%.
“Whereas Ag results in greater open-circuit voltage and fill values, the short-circuit present doesn’t reveal comparable tendencies,” they mentioned.
Lecturers say that the rise in efficiency could also be because of the truth that Ag-alloying adjustments the interface of the cell as a result of it consists of a bi-layer construction with rubidium, indium, selenium (Rb-In -Se) layer and a Cu-depleted one. orders the emptiness compound OVC layer, which may scale back the density of interface defects and act as passivation layers.
They describe the cell know-how, which they declare can be utilized for tandem photo voltaic cell purposes, in “Silver-alloyed low bandgap CuInSe2 photo voltaic cells for tandem purposes,” which was not too long ago revealed in RRL Photo voltaic.
“Till now, we’ve not calculated the extra value, however the advantages will probably be vital if one considers the implication of productions on the industrial stage,” mentioned Krause, when requested about the price of cell manufacturing. “Our lab may be very keen on additional technological improvement and in the direction of industrialization.”
